Vermeer 605N Round Baler – 5' x 6', 540 RPM, Twine, Ramp [605730371]

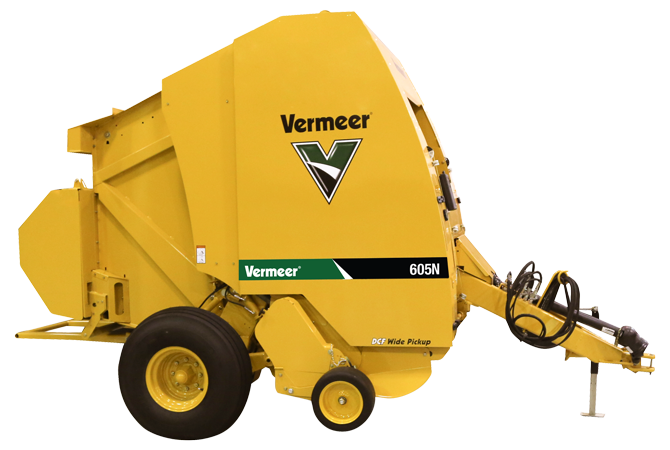

Vermeer 605N Round Baler is a high-capacity round baler designed for producing 5-foot-wide bales with adjustable diameters from 36 to 72 inches. Built with durable, heavy-duty components, the 605N combines a dual-stage bale chamber, eight premium mini rough-top belts, hydraulic pickup lift, and an E-Link Pro control system to support consistent baling performance across hay and forage applications. This configuration is identified as a 5-foot by 6-foot, 540-rpm, twine and ramp model; however, the manufacturer-verified information lists the twine system and hydraulic bale ramp as optional, so their installation should be confirmed for the specific unit.

Product Overview

The Vermeer 605N is engineered for high-capacity baling and offers a 61-inch bale width with a bale diameter range of 36 to 72 inches. Its dual-stage bale chamber supports bale formation, while the eight-belt design and premium mini rough-top belts help manage material during the baling cycle. A physical bale-density gauge and bale-shape indicators provide information during operation, and moisture monitoring is available for readings up to 27%.

The baler uses a 540-rpm standard-lube driveline with a friction clutch. The manufacturer also lists a 1000-rpm driveline option with a cut-out clutch, but this product listing identifies the 540-rpm configuration. The E-Link Pro control system includes a 7-inch color touchscreen, and ISOBUS capability is standard.

Key Features

• Vermeer 605N high-capacity round baler
• 61-inch (154.9-cm) bale width
• Adjustable bale diameter from 36 to 72 inches (91.4 to 182.9 cm)
• Dual-stage bale chamber
• Eight premium mini rough-top belts
• 540-rpm standard-lube driveline with friction clutch
• E-Link Pro control system with 7-inch color touchscreen
• Standard ISOBUS capability
• Rubber-mounted pickup teeth and hydraulic pickup lift
• Physical bale-density gauge and bale-shape indicators
• Moisture monitoring up to 27%
• Extra roll storage standard
• Right-hand door standard
• Twine tie system available as an option
• Hydraulic bale ramp available as an option

Performance and Operation

The 605N can produce bales up to 2,400 pounds (1,088.6 kg), depending on crop and operating conditions. Its 77-inch tooth-to-tooth pickup gathers material across a wide pickup area, while the hydraulic pickup lift supports adjustment during field operation. The physical density gauge and bale-shape indicators help the operator monitor bale formation, and the E-Link Pro display provides control-system information through a color touchscreen interface.

Tractor Requirements

A minimum PTO power requirement of 80 hp (59.7 kW) is specified for the Vermeer 605N. A tractor with 100 hp (74.6 kW) is recommended. This listing identifies the baler with a 540-rpm driveline. Hydraulic operation includes the pickup lift, while the hydraulic bale ramp is optional. Hydraulic flow and pressure requirements were not specified.

Specifications

Important configuration note: The product name references twine and a ramp, while the verified manufacturer information identifies both features as optional. Confirm the installed options and configuration before purchase or deployment.
