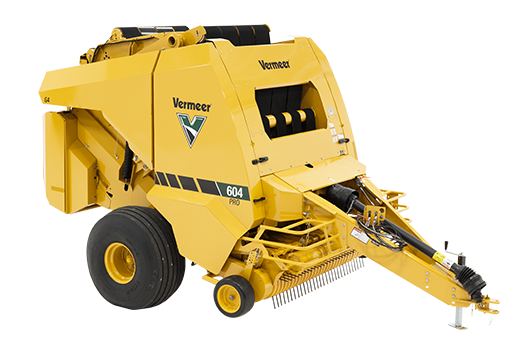

Vermeer 604 Pro G4 Round Baler – 4' x 6', 540 RPM, Netwrap, Ramp, No Knives, Floats [604874611]

Vermeer 604 Pro G4 Round Baler is a variable-chamber round baler configured for 4-foot-wide bales from 36 to 72 inches in diameter. This specification combines a standard 540-rpm driveline, standard netwrap system, spring-loaded bale ramp, no-chopping operation and pickup flotation with a camless wide pickup. Designed for hay producers who need dependable bale formation, adjustable bale size and efficient field operation, the 604 Pro G4 supports bale production up to 2,400 pounds and provides hydraulic pickup lift, Atlas Pro controls and a drop floor to help improve crop flow and clear plugs.

Product Overview

The Vermeer 604 Pro G4 uses a variable-chamber design to produce bales with a 48-inch width and adjustable diameter between 36 and 72 inches. Its 73-inch tooth-to-tooth pickup width and 78-inch outside-flare width help collect the windrow, while the camless wide pickup and hydraulic lift support convenient operation in the field.

This configuration is equipped for netwrapped, no-chopping baling. The standard netwrap system includes a net gauge and net-tension control, while the spring-loaded bale ramp assists with bale discharge. The 17-knife chopping system can be operated with both knife banks lowered, allowing the baler to produce unchopped bales without knives engaged.

Key Features

• Variable bale diameter from 36 to 72 inches
• 48-inch bale width
• Standard 540-rpm driveline with standard lubrication and cut-out clutch
• Standard netwrap system with net gauge and net-tension control
• Spring-loaded bale ramp
• No-chopping configuration with both knife banks lowered and no knives engaged
• Camless wide pickup
• 73-inch pickup width tooth-to-tooth and 78-inch outside-flare width
• Hydraulic pickup lift
• Pickup flotation with 7.10-16 HD semi-pneumatic gauge wheels and spring assist
• Atlas Pro control system with 7-inch color touchscreen
• ISOBUS capability standard
• Drop floor for crop-flow improvement and plug clearing
• Four endless belts, each 11.2 inches wide

Baling Performance and Operation

The adjustable 36–72-inch bale diameter range allows the 604 Pro G4 to produce bales suited to different handling and storage requirements. The baler’s maximum bale weight is 2,400 pounds. Its wide pickup is supported by spring-assisted flotation gauge wheels, helping the pickup follow field contours while collecting crop. The drop floor provides a means to improve crop flow and assist with plug clearing during operation.

Netwrap is standard on this configuration, supporting the supplied netwrapped-bale specification. The spring-loaded ramp is also included for bale discharge. For unchopped baling, both knife banks are lowered so that no knives are engaged.

Specifications

Tractor Requirements

The Vermeer 604 Pro G4 requires a tractor with a minimum PTO output of 90 hp (70 kW). A recommended PTO output of 120 hp (90 kW) is specified for operation. This configuration uses a standard 540-rpm driveline.
