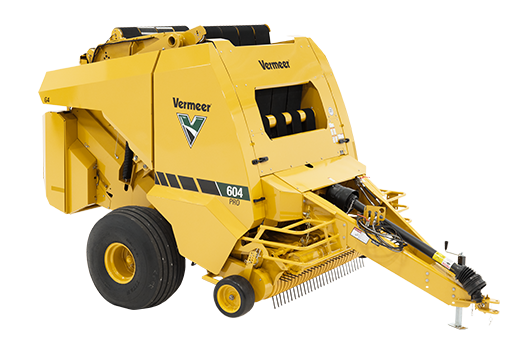

Vermeer 604 Pro G4 Round Baler – 4' x 6', 1000 RPM, Netwrap, Ramp, 17-Knife, Floats, S Package [6041048311]

The Vermeer 604 Pro G4 Round Baler is a variable-chamber round baler configured to produce 4 ft x 6 ft bales with a 1,000-rpm PTO driveline, rear-load netwrap, spring-loaded bale ramp, 17-knife chopping system, flotation pickup gauge wheels, and the supplied S Package configuration. Engineered with versatility, durability, and ease of use in mind, this baler is designed for producers who need dependable forage collection, bale forming, wrapping, and discharge across changing field conditions. The Atlas Pro control system, hydraulic pickup lift, Hydroflex/drop-floor system, and selectable knife banks support efficient operation and crop-flow management from the tractor seat.

Key Features

• Variable-chamber round baler for forming bales from 36–72 in (91–180 cm) in diameter
• 4 ft (48 in / 120 cm) bale width
• 1,000-rpm PTO driveline configuration
• Camless wide pickup with a 73 in (185.4 cm) tooth-to-tooth width and 78 in (198.1 cm) outside-flare width
• Seventy-five double rubber-mounted pickup teeth
• Flotation pickup gauge wheels with spring assist
• 17-knife chopping system with selectable knife banks for different cut lengths
• Rear-load netwrap system with cab-adjustable net tension
• Spring-loaded bale ramp for bale discharge
• Hydraulic pickup lift
• Hydroflex/drop-floor system for crop-flow management and plug clearing
• Atlas Pro control system with a 7-in (18-cm) color touchscreen
• ISOBUS capability and bale shape indicators standard
• Extra netwrap roll storage standard
• Four endless bale-forming belts

Designed for Efficient Forage Handling

The 604 Pro G4 combines a wide, camless pickup with flotation support to help collect forage across the working width. Its 75 double rubber-mounted teeth are supported by 7.10-16 HD semi-pneumatic gauge wheels with spring assist, helping the pickup follow field contours. Hydraulic pickup lift adds convenience when positioning the baler for transport or field operation.

For crop processing flexibility, the 17-knife chopping system uses selectable knife banks to provide different cut lengths. The Hydroflex/drop-floor system is designed to support crop flow and assist with clearing plugs. During bale formation, four endless belts with an 11.2-in (28-cm) belt width help form consistent round bales within the variable-chamber range.

Netwrap, Bale Discharge, and Controls

The supplied configuration includes a rear-load netwrap system with cab-adjustable net tension. Extra netwrap roll storage is standard, while the spring-loaded bale ramp supports bale discharge after formation. The Atlas Pro control system features a 7-in (18-cm) color touchscreen, with bale shape indicators standard to help monitor bale formation. ISOBUS capability is also standard.

Specifications

Tractor Requirements

The Vermeer 604 Pro G4 requires a minimum tractor PTO output of 90 hp (67.1 kW). Vermeer lists 120 hp (89.5 kW) as the recommended PTO requirement. This supplied configuration uses the 1,000-rpm PTO driveline option.
