SSQA WOODSPLITTER INV 4X24 CYL

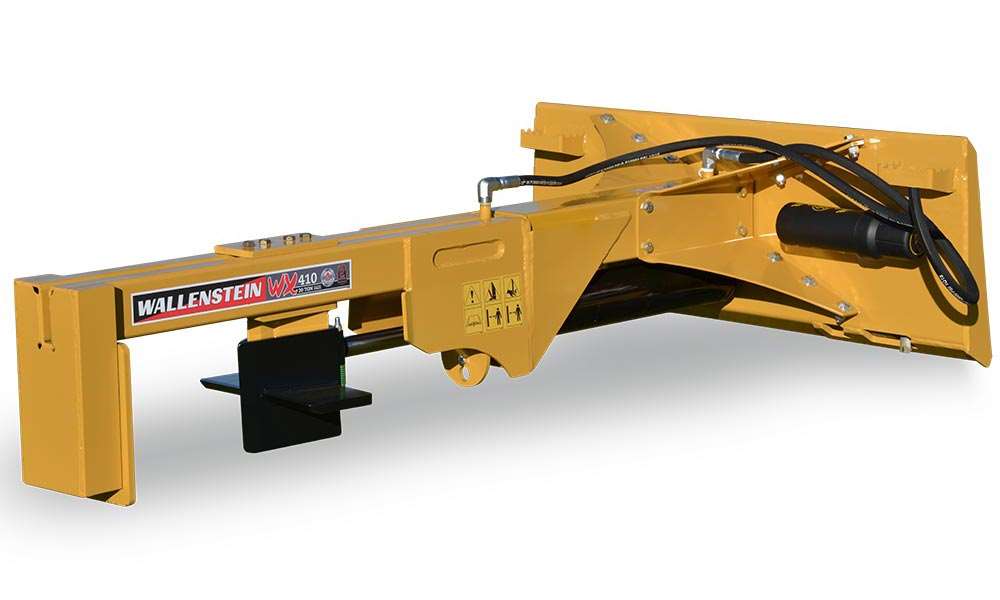

The Wallenstein WX410 20 Ton Inverted Horizontal Skid-Steer Log Splitter is a compact, hydraulically driven attachment designed for efficient firewood processing from the comfort of the skid-steer cab. Its 20-ton split force, 24-inch split opening, 4-inch cylinder, and inverted-horizontal configuration provide a practical setup for splitting logs with skid steer loaders equipped with a universal quick-attach system. Wide log shelves, a wide wedge, and built-in block stripper plates support productive operation, while the included hydraulic hoses and couplers help simplify attachment setup.

Product Overview

The WX410 is a skid-steer-driven log splitter attachment from Wallenstein Outdoor Power Equipment. The inverted-horizontal design positions the splitter for convenient loading and splitting, while the universal quick-attach mounting system allows it to connect to compatible skid steer loaders. Because the splitter is operated from the skid-steer cab, the operator can control the attachment without leaving the machine between splitting cycles.

With a rated split force of 20 tons and a 24-inch split opening, the WX410 is suited to processing logs within its specified opening capacity. The 9-inch wedge height and wide wedge support the splitting process, while the block stripper plates help clear split material from the wedge. Wide log shelves provide a broader support area for handling logs during operation.

Key Features

• 20-ton split force for demanding firewood processing applications
• Inverted-horizontal splitting orientation
• 24-inch (61 cm) split opening
• 4-inch (10 cm) hydraulic cylinder
• 9-inch (23 cm) wedge height
• Wide wedge for splitting support
• Built-in block stripper plates
• Wide log shelves
• Operated from the skid-steer cab
• Universal Quick Attach mounting system
• Hydraulic hoses and couplers included
• Optional W4120 4-way wedge available
• Red colour variant

Hydraulic Performance

The Wallenstein WX410 has a recommended hydraulic flow of 10 gpm (38 L/min). Its average splitter cycle time is listed as 6.62 seconds, while the full cycle time is 13.24 seconds. Actual cycle times are dependent on the hydraulic flow supplied by the skid-steer loader.

Compatibility and Mounting

This attachment is designed for skid steer loaders with universal quick-attach / SSQA mounting. The Universal Quick Attach mounting system provides the specified connection interface for compatible skid steer loaders. Hydraulic hoses and couplers are included with the splitter.

Specifications

Tractor and Loader Requirements

The WX410 is specified for use with skid steer loaders featuring universal quick-attach / SSQA mounting and a recommended hydraulic flow of 10 gpm (38 L/min). Confirm that the loader’s mounting system and hydraulic flow meet these requirements before installation and operation.
