KIOTI Backhoe Complete Kit - Includes KB2485 -8.5ft Digging Depth, Subframe, 18in Bucket, and rear hydraulic valve.

SKU KTT-KB2485-SB-V-18

Regular price: $14,321.⁰⁰

Regular price: $14,321.⁰⁰

Add your machine and attachments to the cart to begin to build and price your package!

When you're ready to take the next step, please reach out to us for a quote.

*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Pricing may not include freight, assembly, finance, delivery, or pdi fees.
*Manufacturer pricing subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

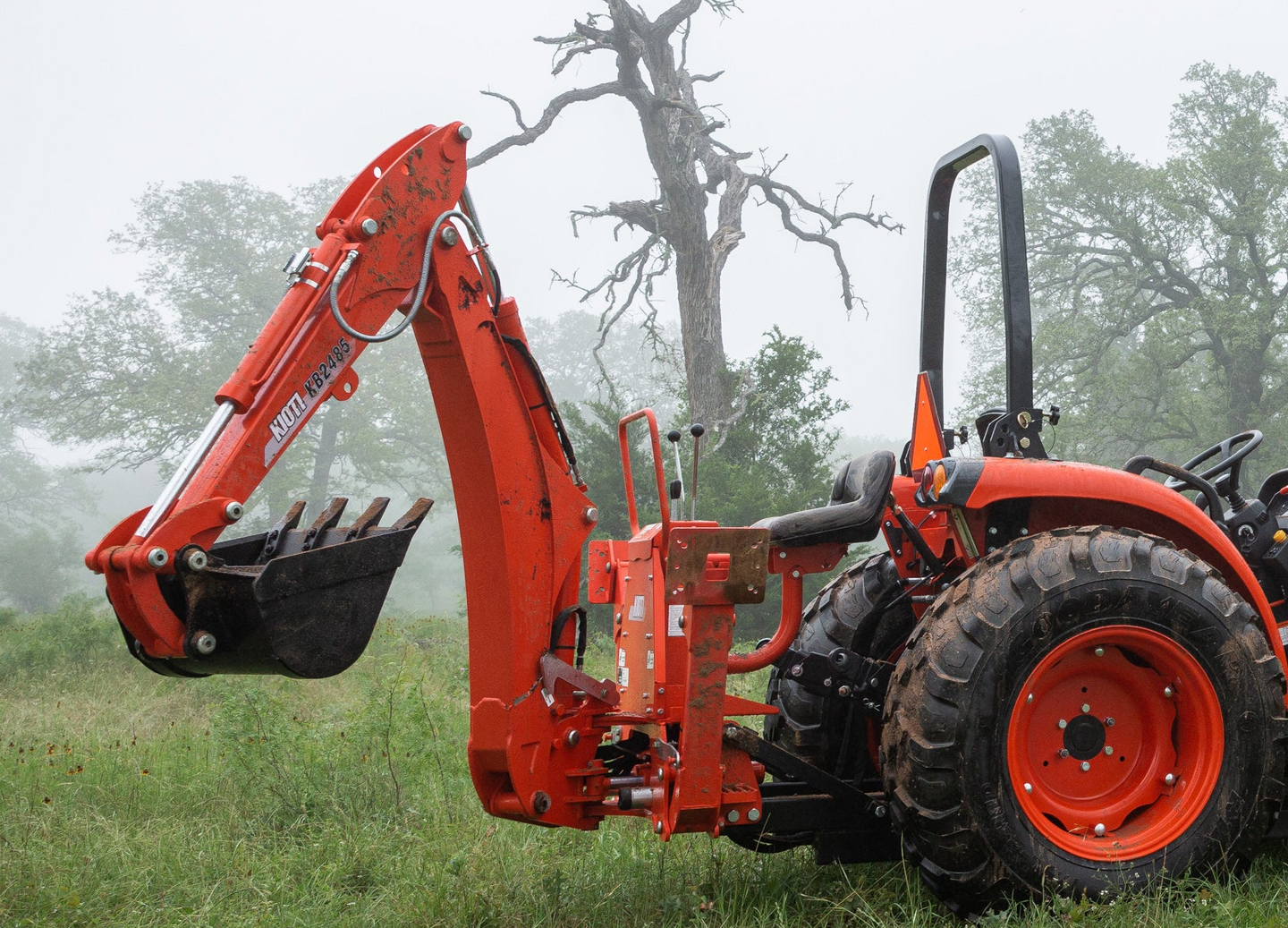

KIOTI KB2485 Backhoe Kit: 8-Foot Digging Depth and Professional Strength

The KIOTI KB2485 Backhoe provides the power and depth necessary for large-scale digging, trenching, and excavation tasks on compact utility tractors. This complete package includes the high-capacity KB2485 backhoe, a dedicated subframe for secure mounting, an 18-inch heavy-duty bucket, and the required rear hydraulic valve kit.

High-Performance Digging

The KB2485 is engineered with high digging forces and a responsive two-lever hydraulic control system, offering exceptional feathering characteristics for precise operation. The subframe mounting ensures the digging forces are distributed across the entire frame of the tractor, providing maximum stability and durability. The entire backhoe, excluding the subframe, is quick-detachable for rapid changes between implements.

Kit Components and Features

KB2485 Backhoe Unit with responsive two-lever controls.
Heavy-Duty Subframe for maximum stability.
18-inch Bucket with replaceable teeth.
Rear Hydraulic Valve Kit (Required for operation).
Hydraulic stabilizers with anti-drop load-checks.

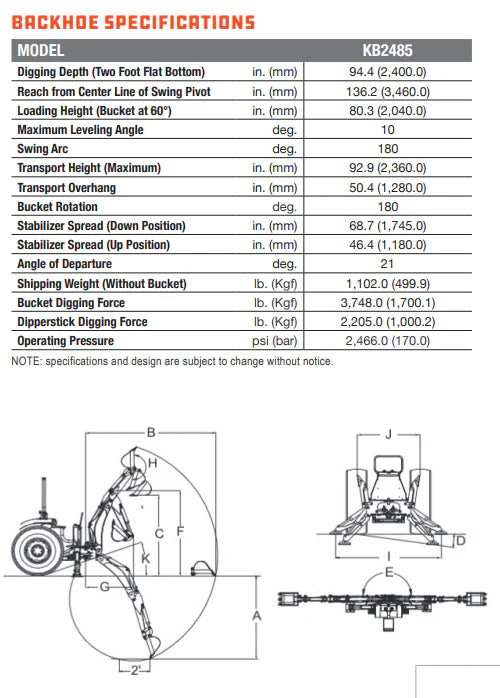

Detailed Specifications (KB2485 Backhoe)

Maximum Digging Depth	94.4 in. (2,400 mm)
Maximum Reach (From Swing Pivot)	136.1 in. (3,460 mm)
Bucket Digging Force	3,748 lbs. (1,700 kg)
Dipperstick Digging Force	2,205 lbs. (1,000 kg)
Loading Height (Bucket at 60°)	80.3 in. (2,040 mm)
Swing Arc	180°
Operating Pressure	2,466 psi (170 bar)
Transport Height (Maximum)	92.9 in. (2,360 mm)
Shipping Weight (Less Bucket)	1,102 lbs. (500 kg)

The KIOTI KB2485 is compatible with various KIOTI DK, DKSE, NS, and NX Series tractors. Tractors must be equipped with a Roll-Over Protective Structure (ROPS) and seat belt for safety.
