GRAPPLE, 48" SS, HR

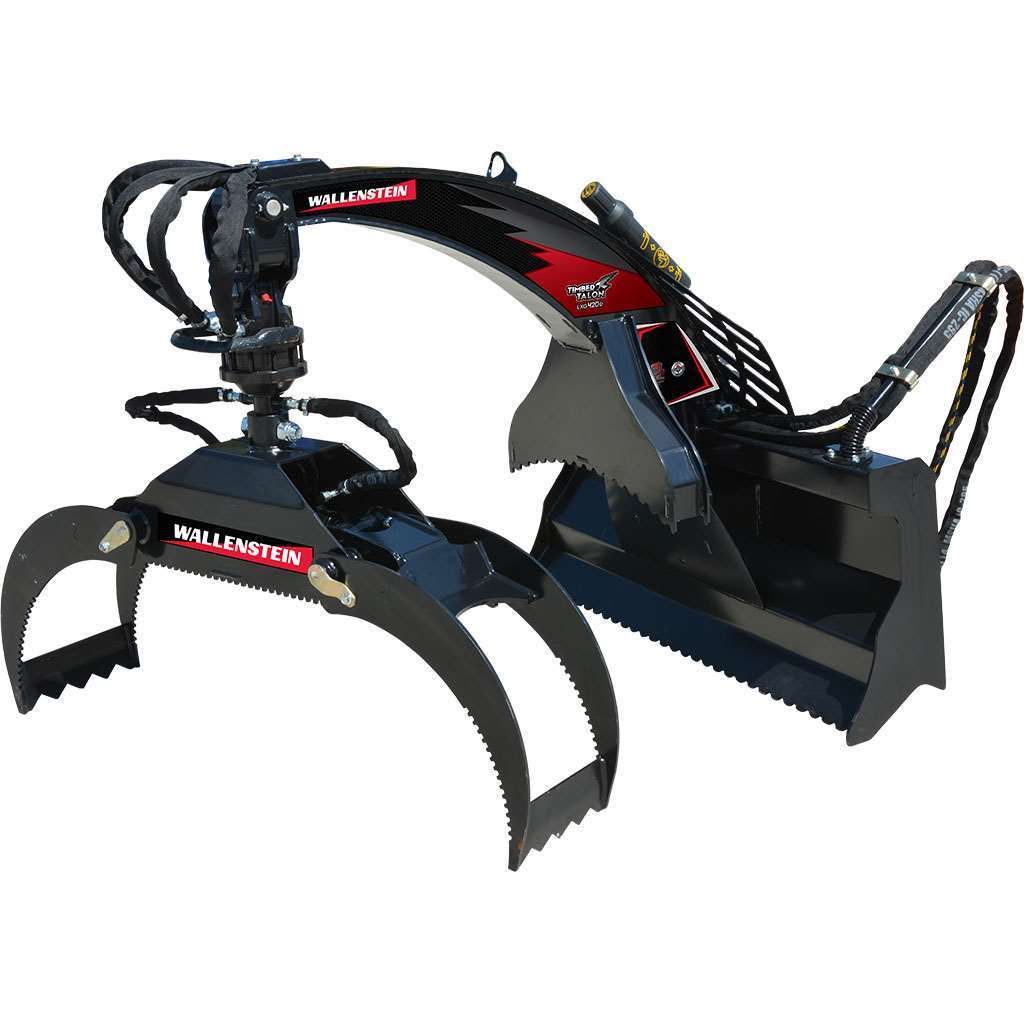

The Wallenstein LXG420R Hydraulic Log Grapple is a heavy-duty skidsteer attachment designed for controlled log handling and material positioning. It combines a 3–48 inch grapple opening with a 360° hydraulic rotator, allowing operators to grip and orient material from the skidsteer seat. With a 3,000 lb lift capacity, 9,400 lb clamp force, bypass grapples, and a cantilever cradle, the LXG420R is built for demanding loading, handling, and log-management tasks. Its universal skidsteer quick-attach plate supports attachment to compatible skidsteer loaders, while hydraulic hoses and couplers are included for connection to the carrier’s hydraulic system.

Wallenstein LXG420R Features

• 3,000 lb lift capacity: Provides substantial lifting capability for log-handling applications.
• 3–48 inch grapple opening: Accommodates a broad range of material sizes, from 3 inches to 48 inches.
• 360° hydraulic rotation: Enables controlled positioning and orientation of the grapple and its load.
• 9,400 lb clamp force: Helps secure material during handling and movement.
• Bypass grapples: Included as part of the grapple design for gripping material.
• Cantilever cradle: Supports the grapple’s log-handling configuration.
• Universal skidsteer quick-attach plate: Designed for connection to skidsteers equipped with the matching universal quick-attach system.
• Hydraulic hoses and couplers included: Supplied with the attachment for connection to the skidsteer hydraulic circuit.

Designed for Controlled Log Handling

The LXG420R combines a wide grapple opening with hydraulic rotation to help operators grasp and position logs and other suitable material. The 360° rotator allows the grapple to turn hydraulically, supporting more precise placement without requiring the skidsteer to be repositioned for every adjustment. The bypass grapple configuration and cantilever cradle complement the attachment’s log-handling design, while the high clamp force helps maintain a secure grip during movement.

At 588 lb, the attachment offers a substantial working tool while keeping its overall dimensions defined for skidsteer use. The unit measures 51 inches long, 52 inches wide, and 47 inches high. Its 48-inch maximum grapple opening provides capacity for larger logs, while the minimum 3-inch opening supports handling of smaller material within the attachment’s specified range.

Compatibility and Mounting

The Wallenstein LXG420R is intended for skidsteer loaders with a universal quick-attach plate. The universal skidsteer quick-attach mounting system provides the attachment interface, and the included hydraulic hoses and couplers connect the grapple to the carrier’s hydraulic system. Confirm that the loader has the appropriate quick-attach plate and hydraulic connections before operation.

Skidsteer Requirements

The manufacturer specifies an engine power range of 30–70 HP and a recommended hydraulic flow of 5 gpm (19 lpm). The carrier must also be suitable for the attachment’s 3,000 lb lift capacity and 588 lb operating weight. Review the skidsteer manufacturer’s rated operating capacity and hydraulic specifications to ensure the loader is appropriate for the intended application.
