WALLENSTEIN

10" PTO DRVN CHIPPER, HYD FEED

SKU BX102RPI
Starting at $23,99500
Starting at $23,99500

Add your items to the Cart to begin to build and price your package!


When you're ready to take the next step, please reach out to us for a quote.

*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Pricing may not include freight, assembly, finance, delivery, or pdi fees.
*Manufacturer pricing subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

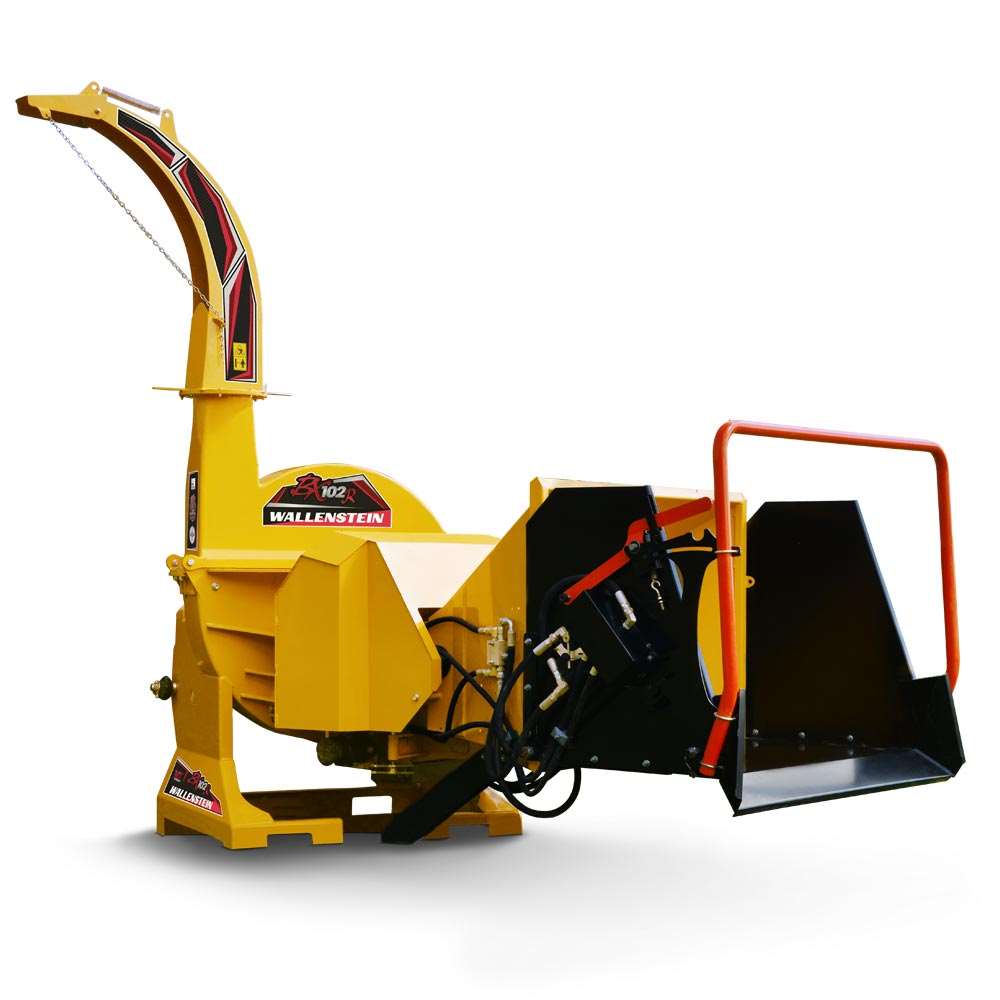

The Wallenstein BX102RPI 10" PTO-Driven Hydraulic Feed Wood Chipper is a heavy-duty, tractor-mounted disc chipper designed for processing branches and woody material up to 10 inches in diameter. Built for tractors rated from 75–120 engine HP, it combines dual hydraulic feed rollers, automatic roller speed control, P3 Pulse™ on-board intelligence, and a hydraulic top-roller lift for controlled, productive feeding. The BX102RPI is the P3 Pulse™ and winch configuration, including a 1,200 lb hydraulic winch with 50 feet of rope to help bring material to the chipper. Its Category II three-point hitch mounting, PTO direct drive, fold-up hopper, adjustable discharge chute, and 360° chute rotation make it suited to demanding property maintenance, land clearing, and wood-processing applications.

Key Features

  • 10-inch (25 cm) chipping capacity
  • PTO direct-drive disc chipper
  • Dual driven hydraulic feed rollers
  • Automatic roller speed control
  • P3 Pulse™ on-board intelligence
  • Hydraulic top-roller lift
  • Hydraulic winch with 1,200 lb (545 kg) pulling capacity
  • 50 ft (15 m) winch rope with 1/4 in (6 mm) diameter
  • Fold-up feed hopper for transport
  • Oversized heavy-duty rotor measuring 36 in (92 cm) in diameter
  • Four reversible rotor knives
  • Adjustable discharge chute with 360° rotation
  • Positional discharge deflector
  • Safety control bar

Designed for Controlled Hydraulic Feeding

The BX102RPI uses a dual hydraulic roller feed system to draw material into the chipper. Automatic roller speed control and P3 Pulse™ on-board intelligence support consistent operation, while the hydraulic top-roller lift helps accommodate material during feeding. The chipper has a 10 x 17 inch (25 x 43 cm) infeed opening and a 30 x 42 inch (76 x 107 cm) hopper opening.

Inside the machine, the four-knife disc rotor has a 36-inch (92 cm) diameter and weighs 425 lb (193 kg). Reversible rotor knives provide a serviceable cutting configuration, while the discharge system offers adjustable positioning and full 360° rotation. The discharge chute height is 100 inches (253 cm).

Integrated Winch and Transport Configuration

The BX102RPI includes a hydraulic winch rated for 1,200 lb (545 kg) of pulling capacity. Its 50-foot (15 m), 1/4-inch (6 mm) rope can assist with positioning material for feeding. For transport, the feed hopper folds to reduce the working width from 85 inches (215 cm) open to 71 inches (180 cm) folded.

Tractor Requirements and Compatibility

This Wallenstein chipper is intended for tractors rated from 75–120 engine HP and requires a Category II three-point hitch. It is iMatch™ compatible and Quick Hitch compatible. The required hydraulic flow is 4–8 gpm (15–30 lpm). The rated PTO speed is 540–1000 rpm; the verified PTO operating requirement includes 540 rpm.

Specifications

Brand Wallenstein Equipment / EMB Manufacturing
Model BX102RPI
Product type PTO-driven 3-point-hitch disc wood chipper
Chipping capacity 10 in (25 cm)
Chipper type Disc
Feed system Dual hydraulic roller
Drive system PTO direct drive
On-board intelligence P3 Pulse™
Required tractor power 75–120 engine HP
Required hydraulic flow 4–8 gpm (15–30 lpm)
Rated PTO speed 540–1000 rpm
PTO height 34 in (86 cm)
Chipper infeed opening 10 x 17 in (25 x 43 cm)
Chipper hopper opening 30 x 42 in (76 x 107 cm)
Number of chipper knives 4
Rotor diameter 36 in (92 cm)
Rotor weight 425 lb (193 kg)
Discharge chute height 100 in (253 cm)
Discharge chute rotation 360°
Winch pulling capacity 1,200 lb (545 kg)
Winch rope length 50 ft (15 m)
Winch rope diameter 1/4 in (6 mm)
Mounting system Category II three-point hitch; iMatch™ and Quick Hitch compatible
Total weight 2,100 lb (953 kg)
Dimensions open, L x W x H 108 x 85 x 100 in (273 x 215 x 253 cm)
Dimensions folded, L x W x H 85 x 71 x 100 in (215 x 180 x 253 cm)
