14,000 LB SKIDDING WINCH

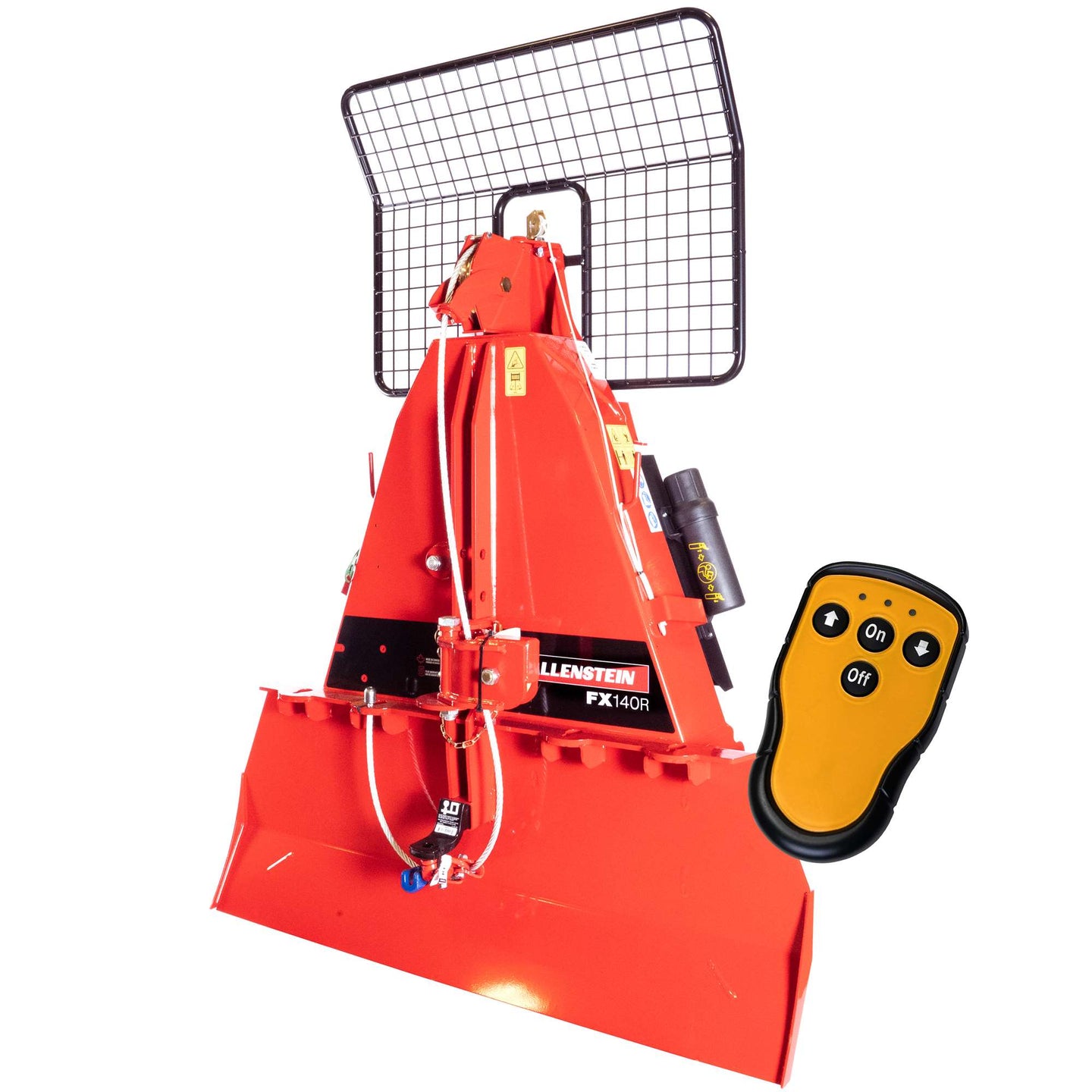

The Wallenstein FX140R 14,000 lb Skidding Winch is a PTO-driven mechanical winch designed for demanding log skidding and forestry work with 80–120 engine HP tractors. Its 14,000 lb (6,350 kg) pulling capacity, 165 ft (50 m) steel cable, remote-control operation, and mechanical dry-disc clutch provide practical pulling performance for moving timber through challenging terrain. Supplied in the steel-cable remote-control configuration identified as FX140R-RED, this winch is suited to agricultural, forestry, and land-management operations that require dependable tractor-powered skidding equipment.

Product Overview

The FX140R uses a tractor PTO to drive its mechanical winch system, with a required PTO input speed of 540 rpm. The dry-disc clutch supports controlled winch operation, while the remote-control configuration allows the operator to control the winch without relying solely on manual controls at the machine. With a line speed of 98–246 ft/min (30–75 m/min), the winch is equipped to handle efficient cable deployment and log recovery operations.

The included 1/2 in (13 mm) steel cable measures 165 ft (50 m), providing useful reach between the tractor and the load. Two choker chains are included for securing loads during skidding. The FX140R has a transport width of 59 in (150 cm), an overall length of 28 in (71 cm), and a total weight of 898 lb (407 kg).

Key Features

• 14,000 lb (6,350 kg) pulling capacity
• PTO-driven mechanical skidding winch
• Remote-controlled operation
• Mechanical dry-disc clutch
• 165 ft (50 m) steel cable
• 1/2 in (13 mm) cable diameter
• Two choker chains included
• 98–246 ft/min (30–75 m/min) line speed
• 540 rpm PTO input
• Suitable for tractors in the 80–120 engine HP range

Tractor Compatibility and Requirements

The Wallenstein FX140R is designed for use with a tractor PTO and is compatible with tractors producing 80–120 engine HP. The tractor must provide a 540 rpm PTO input. The winch also requires hydraulic flow of 1–2 gpm (4–8 lpm). Confirm that the tractor meets the specified engine horsepower, PTO speed, and hydraulic-flow requirements before operation.

Specifications

Applications

The FX140R is intended for tractor-powered skidding applications where high pulling capacity, extended cable reach, and remote operation are valuable. It is suitable for forestry, agricultural, and land-management tasks involving the recovery and movement of logs or timber.
