HLA Attachments - Hydraulic Limb Saw - Up to 14' Reach - 25" Guide Bar - Skid Steer Tree-Trimming Attachment [LA-HLS1224BO500]

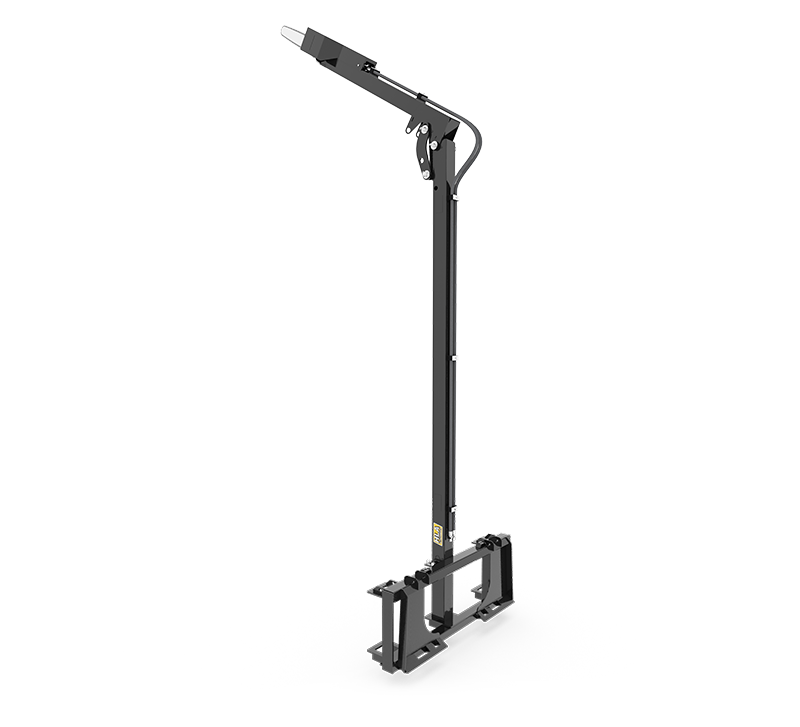

HLA Attachments HLS1224-BO500 Hydraulic Limb Saw is a skid steer-mounted tree-trimming attachment designed to cut elevated limbs while the operator remains in the skid steer seat. With up to 14 feet of attachment reach, a standard Stihl 25-inch guide bar and saw chain, and a hydraulically powered saw producing 22 hp, it provides a practical solution for trimming branches around properties, field edges, lanes, and other areas accessible by a compatible skid steer loader. Automatic chain lubrication, spring-tension cut assist, and three mast mounting positions help support efficient operation and flexible attachment positioning.

Hydraulic Tree-Trimming Capability

The HLS1224 uses the skid steer loader’s auxiliary hydraulic system to power the saw. At the specified hydraulic supply of 15 GPM at 3,000 PSI, the saw is rated for 2,550 rpm, 22 hp, and 45 ft-lb of torque. This hydraulic design allows limb cutting to be controlled from the operator’s seat rather than requiring the operator to use a handheld saw while working at height.

Its mast provides up to 14 feet of attachment reach, helping the saw access elevated branches while the skid steer remains on the ground. Three mast mounting locations are incorporated into the frame base, allowing the mast position to be adjusted to suit the trimming task and operating setup.

25-Inch Stihl Cutting Components

The limb saw is equipped with a standard Stihl 25-inch guide bar and saw chain. The use of standard Stihl cutting components makes replacement straightforward when the guide bar or chain reaches the end of its service life. An automatic chain oiler supplies lubrication during operation, reducing the need for manual oil application and helping maintain the cutting system.

A spring-tension cut-assist system supports the saw during the cut. Together with the extended mast and hydraulic saw drive, this feature provides a purpose-built setup for skid steer-based limb maintenance.

Key Features

• Cuts elevated tree limbs from the operator’s seat of a skid steer loader
• Up to 14 feet of attachment reach
• Standard Stihl 25-inch guide bar and saw chain
• Automatic chain oiler for ongoing cutting-system lubrication
• Spring-tension cut assist
• Three mast mounting positions on the frame base
• Hydraulic saw rated at 2,550 rpm when supplied with 15 GPM
• Rated hydraulic saw output of 22 hp and 45 ft-lb of torque
• BO500 configuration with skid steer mount
• Approximate attachment weight of 395 lb

Compatibility

The HLS1224-BO500 is configured with a skid steer mount. It is compatible with skid steer loaders equipped with a compatible skid steer quick-attach mount and an auxiliary hydraulic system capable of delivering the required flow and pressure. Confirm the loader’s mounting system, auxiliary hydraulic capacity, and attachment operating limits before use.

Skid Steer Hydraulic Requirements

This attachment requires 15 GPM at 3,000 PSI. The host skid steer must be capable of supplying both the specified hydraulic flow and pressure. An optional HK90 90-inch hydraulic hose kit with flat-faced couplers is available; this hose kit is not identified as standard equipment.
