HLA Attachments - 96" Telehandler Scrap Grapple Bucket - Hydraulic Scrap and Material Handling [LA-THSGB96BO500]

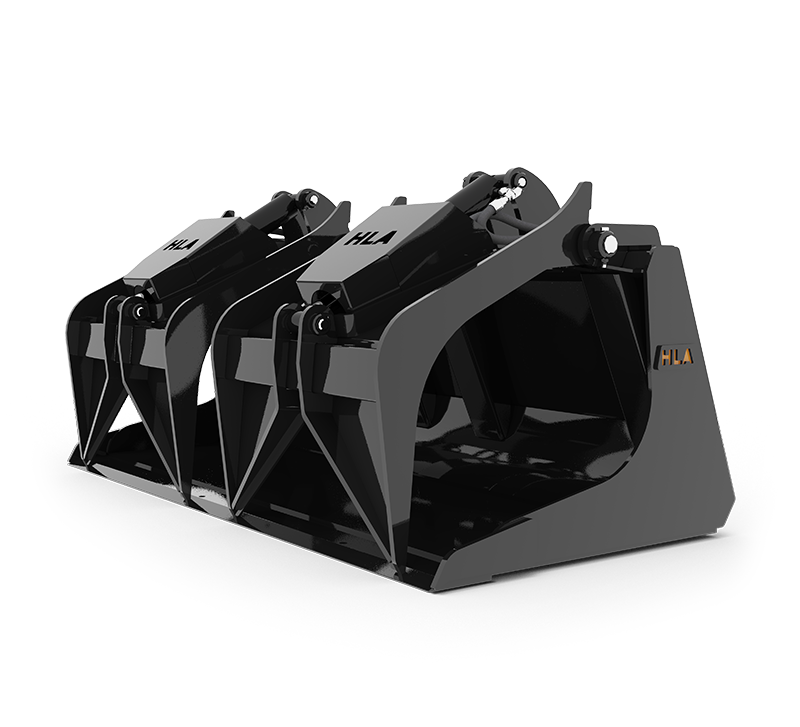

HLA Attachments THSGB96BO500 96-Inch Telehandler Scrap Grapple Bucket is a heavy-duty hydraulic attachment designed to handle awkward, abrasive loads such as scrap and other difficult bulk materials. Its 96-inch inside width, high-capacity bucket and two independently operating grapples help secure uneven loads across the bucket while allowing each grapple to respond separately to the material. This configuration includes HLA’s BO500 universal skid-steer quick-attach mounting interface for use on compatible telehandlers or loaders, making it a practical material-handling solution for demanding cleanup, loading and sorting work.

Heavy-Duty Construction for Abrasive Material

The THSGB96 is built around a substantial bucket structure suited to demanding material-handling applications. The bucket uses 1/4-inch material with 3/8-inch end plates for added strength at the sides. A 3/4 x 6-inch beveled cutting edge provides a durable working edge for engaging material, while the bucket is also drilled to accept a standard bolt-on cutting edge.

With a 43.2-cubic-foot struck capacity and a 54.0-cubic-foot SAE heaped capacity, this 96-inch model provides ample room for bulky material. Its overall dimensions are 31 inches high and 34 inches deep, giving the bucket a high-volume profile without sacrificing the grapple control needed for irregular loads.

Independent Hydraulic Grapple Control

Two independently operating grapples help retain loads that are uneven, loosely packed or difficult to contain with a conventional bucket. Because each grapple operates independently, the attachment can conform more effectively to material of different shapes and heights across the bucket opening.

The grapple system is powered by two 2-1/2 x 8-inch hydraulic cylinders. An auxiliary hydraulic circuit is required for operation. Hydraulic flow, operating pressure and coupler requirements are not published, so the carrier’s hydraulic system and connections should be confirmed before installation.

Key Features

• 96-inch inside bucket width for high-volume material handling
• Two independently operating hydraulic grapples
• Designed for awkward and abrasive loads
• 43.2 cu ft struck capacity
• 54.0 cu ft SAE heaped capacity
• Heavy-duty 1/4-inch bucket material
• Reinforced 3/8-inch end plates
• 3/4 x 6-inch beveled cutting edge
• Drilled for installation of a standard bolt-on cutting edge
• Two 2-1/2 x 8-inch hydraulic cylinders
• BO500 universal skid-steer quick-attach mounting interface

Compatibility

This attachment is configured with the BO500 universal skid-steer quick-attach interface. It is intended for compatible telehandlers or loaders equipped with a universal skid-steer-style quick-attach carrier. Confirm the carrier interface, lift capacity, hydraulic capability and attachment clearance before use.

Carrier and Hydraulic Requirements

• Compatible universal skid-steer-style quick-attach carrier required
• Auxiliary hydraulic circuit required to operate the grapples
• Carrier must be suitable for the attachment’s approximate weight and intended load
• Hydraulic flow, pressure and coupler compatibility should be verified for the specific carrier

Specifications

The approximate 2,055-pound published weight applies to the THSGB96 base attachment. A separate weight adjusted specifically for the BO500 mounting configuration is not published.
