HLA Attachments - 96" Regular Duty Standard Front-End Loader Bucket and GR84 Grapple [LA-MB96GR84BO500]

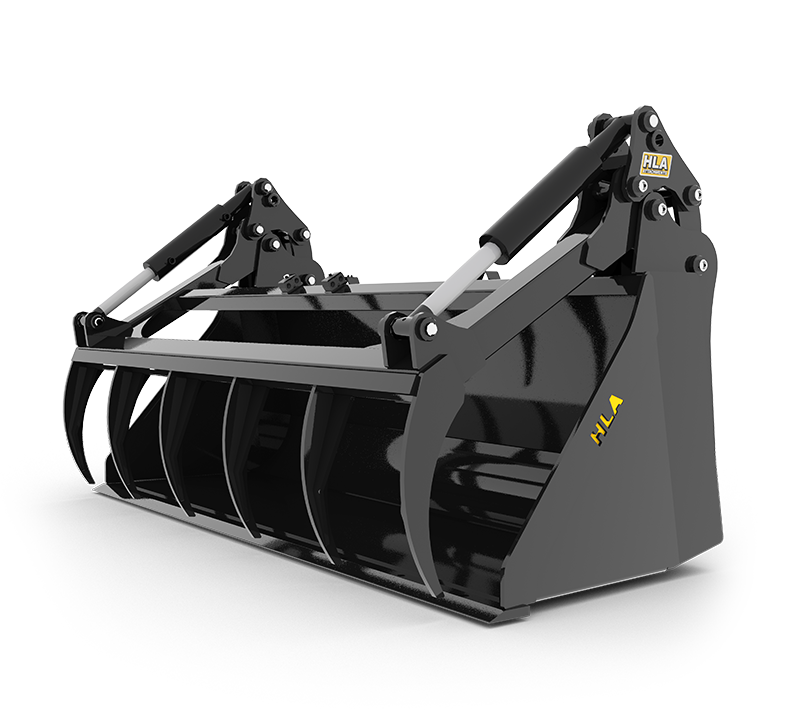

HLA Attachments MB96GR84BO500 Regular-Duty Loader Bucket with GR84 Grapple combines a 96-inch standard material bucket with an 84-inch hydraulic utility grapple for versatile front-end-loader material handling. Designed for loaders equipped with an HLA BO500 universal skid-steer-style quick-attach carrier, this assembly provides a wide bucket, a generous 70-inch grapple opening and two hydraulic cylinders for securing bulky or loose loads. It is well suited to handling materials such as manure and can also accommodate 4-foot round bales.

Versatile Bucket and Grapple Combination

This assembly pairs HLA’s regular-duty MB-series material bucket with the GR84 regular utility grapple. The bucket has a 96-inch inside width and an approximate 98-inch outside width, providing broad coverage for loading, carrying and cleanup work. Its 22.5-cubic-foot struck capacity and 28.6-cubic-foot SAE heaped capacity provide useful volume for general material-handling applications.

The 84-inch grapple opens up to 70 inches, allowing it to close over irregular, bulky and high-volume loads. Two 2-1/2 x 8-inch hydraulic cylinders operate the grapple. Its opening capacity also allows the assembly to accommodate 4-foot round bales, extending its usefulness beyond loose-material handling.

Regular-Duty Bucket Construction

The bucket is manufactured from 3/16-inch material and includes 1/4-inch end plates. A 3/4 x 4-inch beveled cutting edge supports effective entry into material, while the reinforced top lip, round back and reinforced end plates add structure to the bucket design.

For easier positioning during loading and grading work, the flat top of the bucket functions as a level indicator. Self-cleaning tapered end plates are designed to reduce material buildup, helping the bucket release its load more cleanly. The bucket is also drilled to accept an optional bolt-on cutting edge.

Key Features

• 96-inch regular-duty standard front-end-loader material bucket
• 84-inch HLA GR84 regular utility grapple
• Grapple opens up to 70 inches
• Two 2-1/2 x 8-inch hydraulic cylinders
• 22.5-cubic-foot struck bucket capacity
• 28.6-cubic-foot SAE heaped bucket capacity
• 3/16-inch bucket material with 1/4-inch end plates
• 3/4 x 4-inch beveled cutting edge
• Reinforced top lip, round back and end plates
• Flat bucket top serves as a level indicator
• Self-cleaning tapered end plates help reduce material buildup
• Drilled for an optional bolt-on cutting edge
• Accommodates 4-foot round bales
• Suitable for handling materials including manure
• BO500 universal skid-steer-style quick-attach interface

Loader Compatibility

The MB96GR84BO500 is configured with HLA’s BO500 universal skid-steer-style quick-attach mount. It is intended for front-end loaders equipped with a compatible HLA BO500 universal skid-steer-style quick-attach carrier.

The included GR84 grapple is sized for a 96-inch HLA MB-series bucket. This product is supplied as the matched 96-inch bucket and 84-inch grapple configuration identified by model MB96GR84BO500.
