HLA Attachments - 96" Manure Fork Kverneland Tines and GRS84 Grapple 7 7/8" - Hydraulic Material Handling [LA-MFE96GRS84BO500]

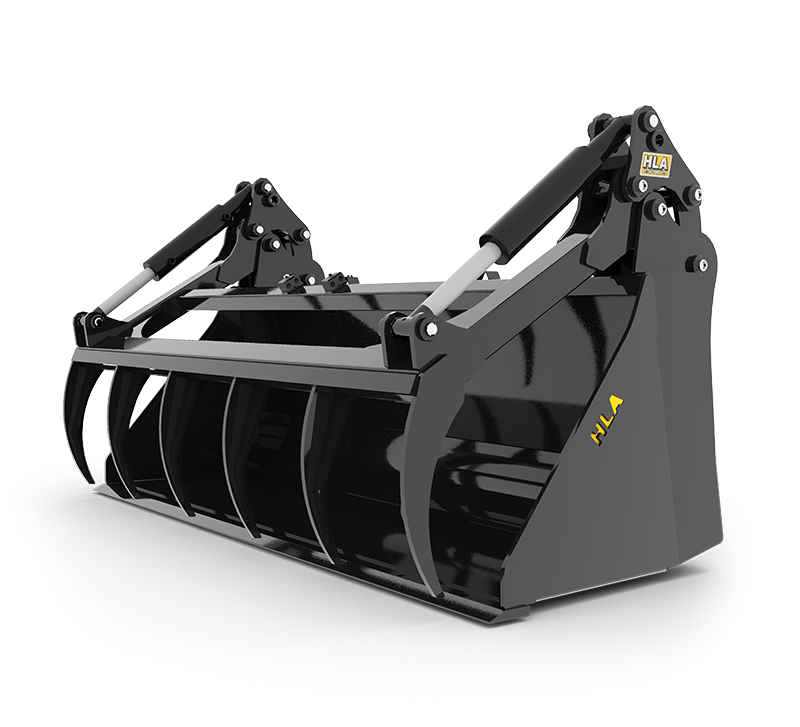

HLA Attachments MFE96GRS84BO500 96-Inch Hydraulic Manure Fork with GRS84 Grapple combines a wide, 13-tine manure fork with an 84-inch hydraulic skid-steer grapple for demanding livestock and material-handling work. Its cranked Kverneland tines are designed for superior penetration, while the grapple opens up to 46 inches to help secure manure, bedding, silage and other loose or bulky material. The BO500 universal skid-steer quick-attach interface allows the attachment to connect to compatible carriers, and its low-clearance grapple-arm design makes it especially suitable for skid steers where available clearance is limited.

Efficient Manure and Material Handling

The 96-inch fork provides broad coverage for moving substantial volumes of material. Thirteen cranked tines are positioned on 7-7/8-inch centers, creating a consistent working surface for penetrating and carrying manure and similar livestock materials. Each tine uses the Conus I system and measures 35 inches overall, with 31 inches of usable length.

The cranked Kverneland tine design is engineered for effective penetration, helping the fork enter compacted or interwoven material. A flat top on the attachment also acts as a level indicator, giving the operator a convenient visual reference when positioning the fork.

Hydraulic GRS84 Skid-Steer Grapple

The integrated GRS84 grapple has a nominal width of 84 inches and is designed specifically for skid steers with limited clearance for grapple arms. It opens to a maximum of 46 inches, providing room to capture bulky loads before closing to retain material during lifting and transport.

Grapple movement is powered by two 2-1/2 x 8-inch hydraulic cylinders. This twin-cylinder arrangement operates the grapple across the attachment’s working area and provides hydraulic control from the carrier. A compatible auxiliary hydraulic function is required; hydraulic flow and pressure requirements are not published.

Key Features

• 96-inch hydraulic manure fork for livestock and general material handling
• 84-inch nominal-width GRS skid-steer grapple
• Designed for skid steers with limited grapple-arm clearance
• Maximum grapple opening of 46 inches
• Two 2-1/2 x 8-inch hydraulic grapple cylinders
• Thirteen cranked Kverneland fork tines
• 7-7/8-inch tine spacing
• 35-inch Conus I tines with 31 inches of usable length
• Superior-penetration tine design
• Flat top serves as a visual level indicator
• BO500 universal skid-steer quick-attach interface
• Approximate attachment weight of 935 lb

Compatibility

The MFE96GRS84BO500 is equipped with the HLA BO500 mounting interface. It is compatible with universal skid-steer quick-attach carriers that accept this interface. Carrier lift capacity, hydraulic capability and attachment clearance should be confirmed before use.

Hydraulic Requirements

A carrier hydraulic function is required to operate the two grapple cylinders. Specific hydraulic flow and pressure requirements are not published.
