HLA Attachments

HLA Attachments - 96" Brush Grapple - Hydraulic Material Handling [LA-BRG96BO500]

SKU LA-BRG96BO500
Starting at $5,30500
Starting at $5,30500

Add your items to the Cart to begin to build and price your package.


When you're ready to take the next step, please reach out to us for a quote, or complete the checkout process to reserve your items in store. (The online checkout just emails us a copy of the items you are interested in, we then reach out to you to confirm everything.)

Showing pricing online is difficult, here's why:
*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Online pricing does not include freight, assembly, finance, delivery, or pdi fees.
*Our manufacturer's pricing is subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

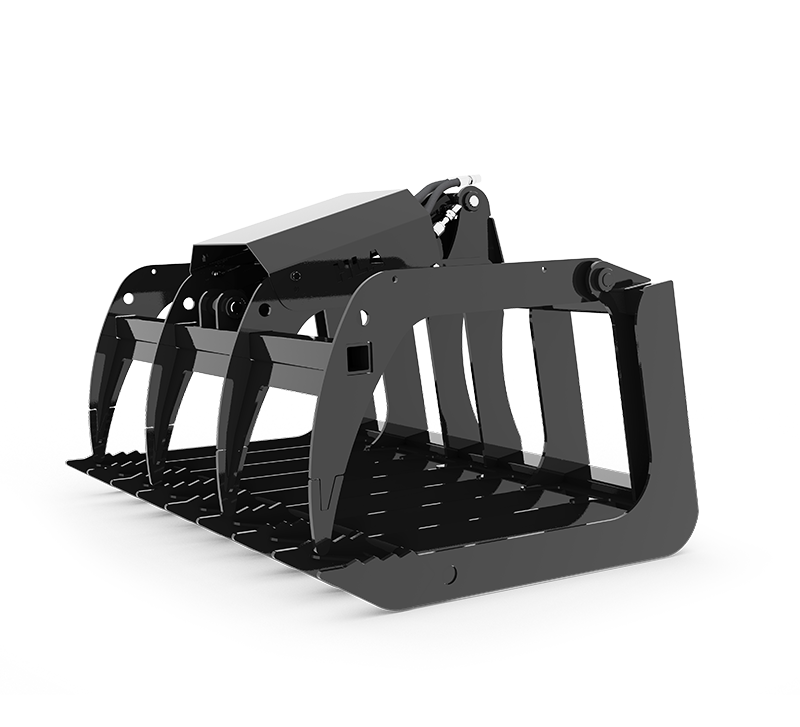

HLA Attachments BRG96BO500 96-Inch Hydraulic Brush Grapple is a heavy-duty material-handling attachment built for collecting, clamping, and moving brush and other awkward loads. Its wide 96-inch working width provides substantial coverage, while two independent grapples conform to uneven material for more effective load control. A 48-inch maximum opening, closely spaced tines, AR400 tine and grapple tips, and the BO500 universal skid-steer quick-attach interface make this grapple well suited to demanding land-clearing and material-handling work.

Designed for Brush and Awkward Loads

The BRG96BO500 combines a broad tine section with independently operating grapple sections. This configuration helps secure irregular loads that may not be evenly distributed across the full width of the attachment. The grapple opens to 48 inches when measured from the ground to the point of the grapple, providing room to gather and clamp bulky material.

Tines are spaced 5-1/2 inches apart to help retain brush and similar material while handling a load. The tine tips and grapple tips are manufactured from AR400 material, providing durable contact points in areas exposed to demanding use.

Independent Hydraulic Grapples

Two independent grapples allow the attachment to clamp uneven or awkward material more effectively than a single full-width grapple. Each side can respond to the shape of the load, helping maintain contact when one side of the grapple encounters more material than the other. The grapple is equipped with 2-1/2 x 8-inch hydraulic cylinders.

Key Features

  • 96-inch hydraulic brush grapple for material handling and land-clearing applications
  • Opens to 48 inches from the ground to the point of the grapple
  • Two independent grapples for clamping uneven and awkward loads
  • AR400 material used for the tine tips and grapple tips
  • 5-1/2-inch spacing between tines
  • Equipped with 2-1/2 x 8-inch hydraulic cylinders
  • BO500 universal skid-steer quick-attach mounting interface
  • Approximate attachment weight of 1,005 lb
  • Optional 90-inch hose kits and spring hose mount kit are available

Compatibility

The HLA Attachments BRG96BO500 is configured with the BO500 universal skid-steer attachment interface. It is compatible with loaders using a universal skid-steer quick-attach system. Confirm the loader’s attachment interface, hydraulic connection requirements, and operating capacity before use.

Specifications

Brand HLA Attachments
Manufacturer HLA Attachments (Horst Welding)
Complete Model BRG96BO500
Base Model BRG96
Product Type Hydraulic brush grapple
Working Width 96 in.
Transport Width 96 in.
Approximate Weight 1,005 lb
Maximum Opening 48 in. from the ground to the grapple point
Tine Spacing 5-1/2 in. between tines
Tip Material AR400 tine tips and grapple tips
Grapple Configuration Two independent grapples
Hydraulic Cylinder Size 2-1/2 x 8 in.
Mount BO500 universal skid-steer quick attach
Optional Equipment 90 in. hose kits and spring hose mount kit
Product Code LA-BRG96BO500
