HLA Attachments - 84" Stone Fork Retainer Tine and GR72 Grapple - Stone and Debris Handling [LA-SFR84GR72BO500]

SKU LA-SFR84GR72BO500
Starting at $5,65000
Starting at $5,65000

Add your items to the Cart to begin to build and price your package.


When you're ready to take the next step, please reach out to us for a quote, or complete the checkout process to reserve your items in store. (The online checkout just emails us a copy of the items you are interested in, we then reach out to you to confirm everything.)

Showing pricing online is difficult, here's why:
*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Online pricing does not include freight, assembly, finance, delivery, or pdi fees.
*Our manufacturer's pricing is subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

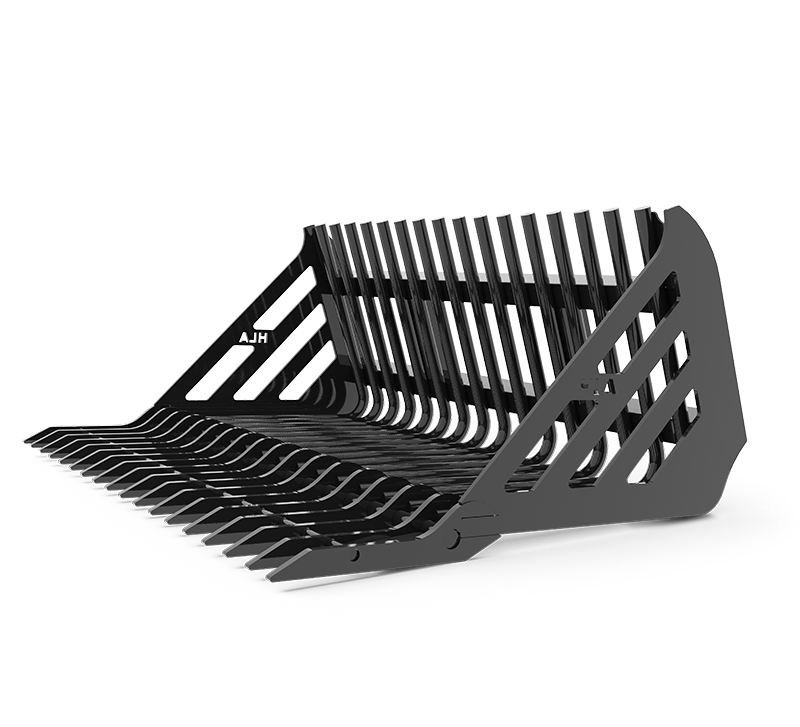

HLA Attachments SFR84GR72BO500 Stone Fork with GR72 Grapple combines an 84-inch regular-duty stone fork with retainer-style tines and a 72-inch hydraulic regular utility grapple. Built for stone and debris handling, this package provides the tine spacing, grapple reach, and holding capability needed to gather, secure, and move irregular material. Its BO500 quick-attach mounting configuration is designed for compatible loader carriers, while two hydraulic cylinders operate the grapple through an opening of up to 70 inches.

Stone and Debris Handling

The 84-inch stone fork uses 1-1/4-inch-diameter tines with 2-1/2-inch spacing, allowing loose material to pass between the tines while stones and larger debris are retained. Retainer-style tines help contain material during handling, and the stone fork has a rated capacity of 5,500 lb.

For durability in ground-contact applications, the tine points are constructed from 5/8-inch-thick, 400 Brinell high-strength steel. The stone fork measures 23 inches high without the grapple and 40 inches deep, providing a substantial working area for collecting material.

GR72 Hydraulic Grapple

The included GR72 regular utility grapple is sized to fit the 84-inch SFR stone fork. At 72 inches wide, it provides broad coverage across the attachment while leaving the outer portion of the stone fork available for positioning material. The grapple opens up to 70 inches to accommodate bulky or uneven loads.

Two 2-1/2 x 8-inch hydraulic cylinders provide grapple actuation. This configuration allows the operator to secure stones, debris, and other irregular material against the fork for improved control during lifting and movement.

Key Features

  • 84-inch regular-duty stone fork with retainer-style tines
  • 72-inch GR72 regular utility grapple
  • Grapple opening of up to 70 inches
  • Two 2-1/2 x 8-inch hydraulic cylinders
  • 5,500 lb stone-fork capacity
  • 1-1/4-inch-diameter stone-fork tines
  • 2-1/2-inch spacing between tines
  • 5/8-inch-thick tine points made from 400 Brinell high-strength steel
  • BO500 quick-attach mounting configuration
  • Approximate attachment weight of 1,315 lb

Compatibility

The SFR84GR72BO500 is configured for loaders equipped with a BO500-compatible quick-attach carrier. The included GR72 grapple is sized for the 84-inch SFR stone fork. Confirm that the loader’s carrier matches the BO500 mounting configuration before purchase or installation.

Specifications

Brand HLA Attachments
Model SFR84GR72BO500
Manufacturer base model SFR84GR72
Product type Regular-duty stone fork with hydraulic regular utility grapple
Stone fork width 84 in
Grapple width 72 in
Nominal transport width 84 in
Grapple opening Up to 70 in
Hydraulic cylinders Two 2-1/2 x 8 in cylinders
Stone fork capacity 5,500 lb
Tine diameter 1-1/4 in
Tine spacing 2-1/2 in
Tine point construction 5/8 in thick, 400 Brinell high-strength steel
Stone fork height without grapple 23 in
Stone fork depth 40 in
Mounting configuration BO500 quick attach
Approximate weight 1,315 lb
Product code LA-SFR84GR72BO500
