HLA Attachments - 84" Low Profile Skid Steer Bucket and GRS72 Grapple - Low-Profile Skid Steer Attachment [LA-SBLP84GRS72BO500]

SKU LA-SBLP84GRS72BO500

Starting at: Starting at $4,325.⁰⁰

Starting at: Starting at $4,325.⁰⁰

Add your items to the Cart to begin to build and price your package.

When you're ready to take the next step, please reach out to us for a quote, or complete the checkout process to reserve your items in store. (The online checkout just emails us a copy of the items you are interested in, we then reach out to you to confirm everything.)

Showing pricing online is difficult, here's why:
*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Online pricing does not include freight, assembly, finance, delivery, or pdi fees.
*Our manufacturer's pricing is subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

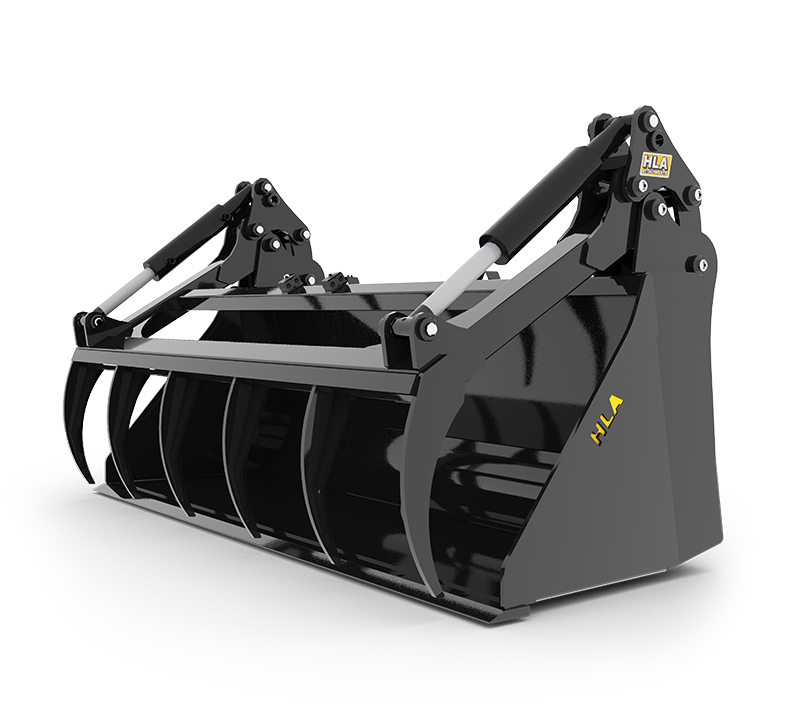

HLA Attachments SBLP84GRS72 84-Inch Low-Profile Skid-Steer Grapple Bucket combines an 84-inch bucket with a 72-inch nominal GRS72 grapple for efficient material handling. Its low-profile bucket and grapple configuration is specifically designed for skid steers with limited clearance around the grapple arms. With a maximum 35-inch opening and two 2-1/2 x 8-inch hydraulic cylinders, this attachment provides the opening capacity and hydraulic actuation needed for handling a range of bulky or difficult-to-contain materials.

Low-Profile Bucket and Grapple Design

The SBLP84GRS72 pairs a wide skid-steer bucket with HLA Attachments’ GRS72 grapple. The low-profile arrangement is particularly useful when machine geometry restricts grapple-arm clearance. This purpose-built configuration helps operators add grapple functionality without selecting a taller attachment that may not suit the available clearance.

The bucket measures 84 inches wide, while the grapple has a nominal width of 72 inches. This combination provides broad bucket coverage with a centrally positioned grapple for retaining material during loading, handling, and transport. The grapple opens to a maximum of 35 inches, giving it room to engage larger loads while maintaining control through its hydraulic cylinders.

Key Features

84-inch low-profile skid-steer bucket
Fitted with the HLA Attachments GRS72 grapple
72-inch nominal grapple width
Designed for skid steers with limited grapple-arm clearance
Maximum grapple opening of 35 inches
Two 2-1/2 x 8-inch hydraulic cylinders
Approximate attachment weight of 900 lb
Optional 90-inch hydraulic hose kits available
Optional spring hose-mount kit available

Hydraulic Operation

The grapple is operated by two 2-1/2 x 8-inch hydraulic cylinders. Hydraulic flow and pressure requirements are not published, so the skid steer’s auxiliary hydraulic system should be reviewed before installation. Hydraulic hose kits are optional, allowing the appropriate hose and coupler arrangement to be selected for the machine.

Available hydraulic connection options include the HK90 90-inch hose kit with flat-faced couplers and the HK9090 90-inch hose kit with 90-degree flat-faced couplers. An SHMK spring hose-mount kit is also available to help support hose routing.

Compatibility

The SBLP84GRS72 is intended for skid steers with limited clearance for grapple arms. Before ordering, confirm that the machine can safely accommodate the attachment’s approximately 900 lb weight, 84-inch working width, hydraulic cylinders, and required hose routing. Hydraulic flow and pressure requirements are not published.

Specifications

Brand	HLA Attachments
Manufacturer	HLA Attachments (Horst Loader Attachments)
Manufacturer Part Number	SBLP84GRS72
Product Type	Low-profile skid-steer grapple bucket
Bucket Width	84 in
Grapple Model	GRS72
Nominal Grapple Width	72 in
Maximum Opening	35 in
Hydraulic Cylinders	Two 2-1/2 x 8 in cylinders
Approximate Weight	900 lb
Available Family Widths	66–96 in
Product Code	LA-SBLP84GRS72BO500
