HLA Attachments - 84" Grapple Only To Fit 96" Fork Or Bucket with Cylinders - Hydraulic Material Handling [LA-GRL84]

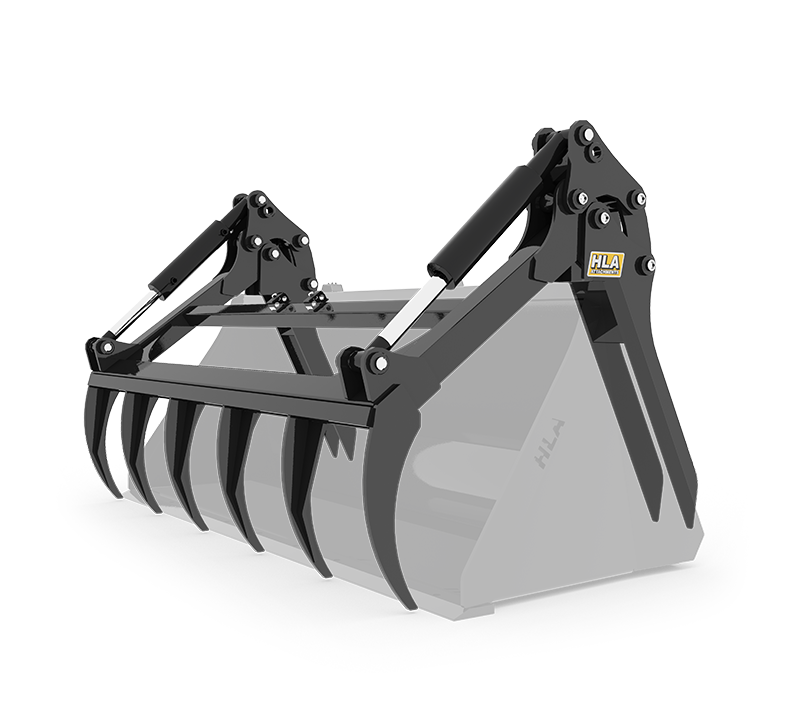

HLA Attachments GRL84 84-Inch Large Utility Grapple is a heavy-duty hydraulic grapple designed to bolt onto a compatible 96-inch HLA fork or bucket assembly. Built for demanding agricultural and material-handling applications, it is well suited to moving large round and square bales, with capacity for round bales up to 6 feet and a maximum opening of 85 inches. Hydraulic cylinders are included, while the host fork or bucket and hydraulic hose kit are sold separately.

Heavy-Duty Bale and Material Handling

The GRL84 provides an 84-inch grapple width for controlling large, bulky loads. Its heavy-duty construction and wide opening make it particularly useful for handling large round or square bales. The grapple weighs approximately 655 lb and belongs to HLA Attachments’ Large Utility Grapple product family.

This model is supplied as a grapple attachment rather than a complete bucket or fork assembly. Removable bolt-on mounting posts allow it to be installed on a compatible 96-inch HLA fork or bucket. No standalone loader quick-attach interface is specified, so the GRL84 must be paired with an appropriate host attachment.

Key Features

• Heavy-duty hydraulic grapple for agricultural and material-handling work
• 84-inch grapple width
• Designed to fit compatible 96-inch HLA fork or bucket assemblies
• Handles large round and square bales
• Accommodates round bales up to 6 feet
• Opens up to 85 inches for large and bulky loads
• Removable bolt-on mounting posts
• Hydraulic cylinders included
• Approximate grapple weight of 655 lb
• Optional bolt-on guard and hydraulic hose kits available separately

Compatibility

The GRL84 is intended to fit a 96-inch HLA fork or bucket from the compatible SB, SBHV, MB, MBHV, MBHVX, and THMB model families. It does not fit THMBHV or THMBHVX buckets.

Confirm the model family and width of the existing HLA fork or bucket before ordering. This product includes the grapple and hydraulic cylinders only; the required 96-inch host fork or bucket is not included.

Hydraulic Requirements and Options

Hydraulic cylinders are supplied with the grapple. A hydraulic hose kit is optional and must be selected separately when required. Available options include the HK90 90-inch hose kit with flat-faced couplers and the HK9090 90-inch hose kit with 90-degree flat-faced couplers. Hydraulic flow and pressure requirements are not specified.

An optional LP101576 bolt-on guard is also available. This guard has a listed weight of 52 lb and is not included with the standard grapple.

Specifications

What Is Included

The package includes the HLA Attachments GRL84 84-inch grapple with hydraulic cylinders. A compatible 96-inch HLA fork or bucket, hydraulic hose kit, and optional bolt-on guard are not included.
