HLA Attachments

HLA Attachments - 84" Grapple Only To Fit 96" Fork Or Bucket with Cylinders - Hydraulic Material Handling [LA-GR84]

SKU LA-GR84
Starting at $2,60000
Starting at $2,60000

Add your items to the Cart to begin to build and price your package.


When you're ready to take the next step, please reach out to us for a quote, or complete the checkout process to reserve your items in store. (The online checkout just emails us a copy of the items you are interested in, we then reach out to you to confirm everything.)

Showing pricing online is difficult, here's why:
*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Online pricing does not include freight, assembly, finance, delivery, or pdi fees.
*Our manufacturer's pricing is subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

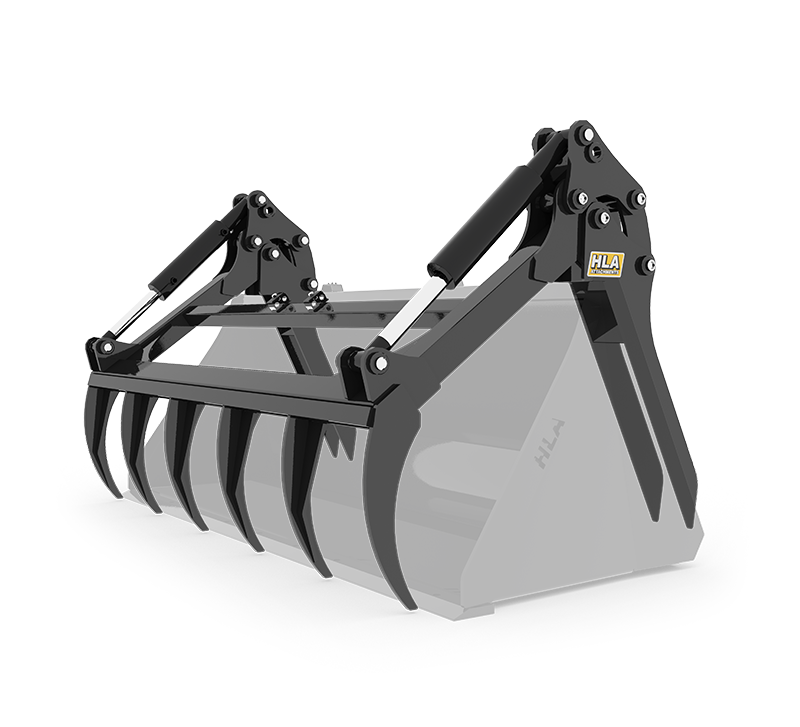

HLA Attachments GR84 84-Inch Regular Utility Grapple is a hydraulic, grapple-only attachment designed to fit a compatible 96-inch HLA fork or bucket. Supplied with hydraulic cylinders, it adds secure material-handling capability for demanding jobs involving manure, round bales, and other bulky materials. Its 84-inch working width provides broad coverage, while the grapple opens to a maximum of 70 inches to accommodate substantial loads, including 4-foot round bales.

Hydraulic Material Handling

The GR84 is part of HLA Attachments’ Regular Utility Grapple series. It is designed to work with an existing compatible fork or bucket, allowing the host attachment to hold material while the hydraulic grapple closes over the load. This configuration helps contain bulky or irregular material during handling and transport.

With its wide opening, the grapple is suited to applications where a standard bucket or fork may need additional load control. The included hydraulic cylinders operate the grapple through its opening and closing range. At approximately 515 lb, the GR84 is a substantial attachment intended for use with compatible equipment and HLA attachment families.

Key Features

  • 84-inch Regular Utility Grapple from HLA Attachments
  • Grapple-only configuration for a compatible 96-inch HLA fork or bucket
  • Hydraulic cylinders included
  • Maximum opening of 70 inches
  • Accommodates 4-foot round bales
  • Suitable for handling materials such as manure
  • Compatible with HLA SB, SBHV, MB, MBHV, MFE, and SFR model families
  • Approximate attachment weight of 515 lb

Applications

The HLA GR84 provides added load retention for agricultural and general material-handling work. Its 70-inch opening allows it to close around large, awkward loads, while its compatibility with 4-foot round bales makes it useful for bale handling. It can also help secure loose or uneven materials such as manure when paired with the appropriate compatible fork or bucket.

Compatibility

This grapple is designed to fit a 96-inch HLA fork or bucket. Compatible HLA attachment families are SB, SBHV, MB, MBHV, MFE, and SFR. Confirm that the existing host fork or bucket belongs to a listed compatible family and has the required 96-inch width before ordering.

Please note: this product is the grapple and hydraulic cylinders only. The host fork or bucket is not included.

Specifications

Brand HLA Attachments
Product type Regular Utility Grapple
Manufacturer model GR84
Catalogue product code LA-GR84
Grapple width 84 in
Compatible host width 96 in fork or bucket
Maximum opening 70 in
Bale compatibility 4 ft round bales
Cylinder configuration Hydraulic cylinders included
Approximate weight 515 lb
Compatible HLA model families SB, SBHV, MB, MBHV, MFE, and SFR
