HLA Attachments

HLA Attachments - 72" Grapple Only To Fit 84" Fork Or Bucket with Cylinders - Hydraulic Material Handling [LA-GRL72]

SKU LA-GRL72
Starting at $3,27500
Starting at $3,27500

Add your items to the Cart to begin to build and price your package.


When you're ready to take the next step, please reach out to us for a quote, or complete the checkout process to reserve your items in store. (The online checkout just emails us a copy of the items you are interested in, we then reach out to you to confirm everything.)

Showing pricing online is difficult, here's why:
*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Online pricing does not include freight, assembly, finance, delivery, or pdi fees.
*Our manufacturer's pricing is subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

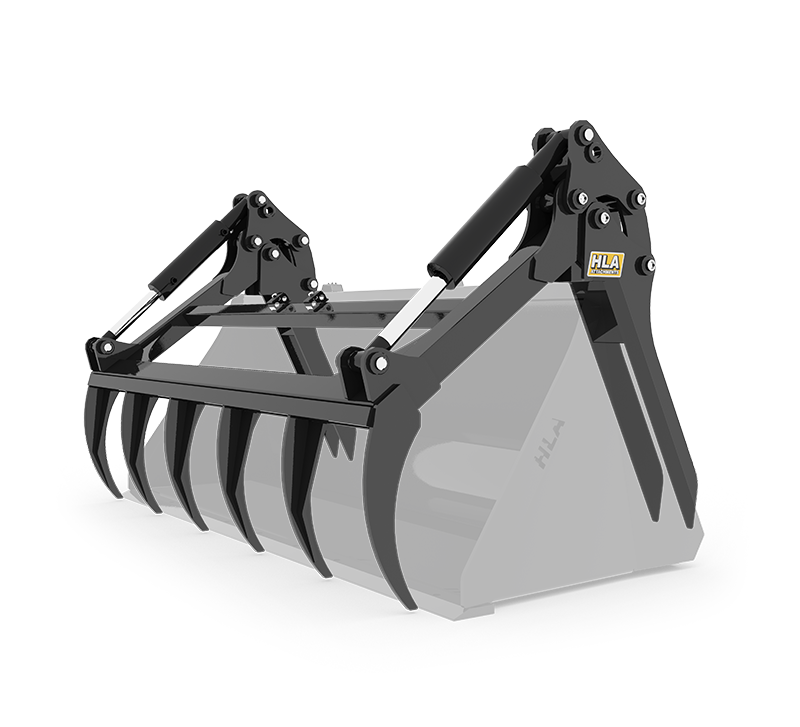

HLA Attachments GRL72 Large Utility Grapple is a heavy-duty, 72-inch grapple-only assembly designed for installation on a compatible 84-inch HLA fork or bucket. Built for demanding material-handling applications, it is suitable for handling large round and square bales and can accommodate round bales up to 6 feet. The grapple opens to a maximum of 85 inches, providing the capacity needed to secure bulky loads. Hydraulic cylinders are supplied, while removable bolt-on mounting posts simplify installation on a compatible assembly.

Heavy-Duty Bale and Material Handling

The GRL72 expands the capabilities of an existing compatible HLA fork or bucket by adding hydraulic grapple functionality. Its large opening allows the operator to engage, hold and move substantial loads, including large round and square bales. The 72-inch grapple width provides broad load coverage, while the heavy-duty construction is intended for utility and agricultural material-handling work.

This product is the grapple assembly only and is specifically sized for an 84-inch HLA fork or bucket. Confirm the model family and attachment width before ordering. The GRL72 fits selected HLA SB, SBHV, MB, MBHV, MBHVX and THMB assemblies, but it does not fit THMBHV or THMBHVX buckets.

Key Features

  • Heavy-duty large utility grapple for agricultural and material-handling applications
  • Designed for handling large round and square bales
  • Accommodates round bales up to 6 feet
  • 72-inch grapple width
  • Fits compatible 84-inch HLA fork or bucket assemblies
  • Maximum opening of 85 inches for engaging bulky loads
  • Supplied with hydraulic cylinders
  • Removable bolt-on mounting posts
  • Approximate grapple weight of 640 lb
  • Optional bolt-on guard and hydraulic hose kits available

Compatibility

The HLA GRL72 is designed to fit an 84-inch HLA fork or bucket assembly. Compatible HLA model families are:

  • SB
  • SBHV
  • MB
  • MBHV
  • MBHVX
  • THMB

Important: The GRL72 does not fit THMBHV or THMBHVX buckets. This listing is for the 72-inch grapple-only assembly with hydraulic cylinders; the compatible 84-inch fork or bucket is not identified as part of this product.

Mounting and Hydraulic Setup

Removable bolt-on mounting posts provide the connection point for installing the grapple on a compatible HLA fork or bucket. Hydraulic cylinders are included with the grapple. Hose kits are available separately in straight-coupler and 90-degree-coupler configurations, allowing the hydraulic connection arrangement to be selected for the application.

Available Options

  • LP101006 bolt-on guard: Optional guard weighing approximately 44 lb
  • HK90 hose kit: Optional 90-inch hose kit with flat-faced couplers
  • HK9090 hose kit: Optional 90-inch hose kit with 90-degree flat-faced couplers

Specifications

Brand HLA Attachments
Product type Large utility grapple attachment
Manufacturer part number GRL72
Catalogue product code LA-GRL72
Grapple width 72 in
Compatible fork or bucket width 84 in
Maximum opening 85 in
Maximum stated round-bale size 6 ft
Weight Approximately 640 lb
Hydraulic cylinders Included
Mounting posts Removable, bolt-on
Compatible HLA model families SB, SBHV, MB, MBHV, MBHVX and THMB
Explicit exclusions THMBHV and THMBHVX buckets
