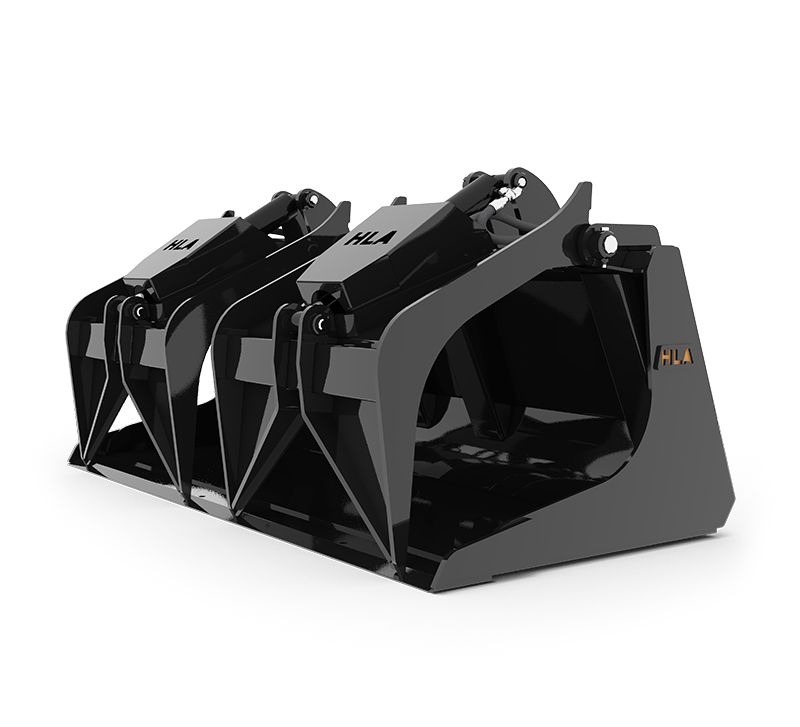

HLA Attachments - 42" Compact Scrap Grapple Bucket - Hydraulic Material Handling [LA-SGBC42BO500]

HLA Attachments SGBC42BO500 42-inch Compact Scrap Grapple Bucket is a hydraulic material-handling attachment designed to combine a compact bucket with a single grapple arm for gathering, loading, and retaining scrap and other materials. It provides a 42-inch inside width, approximately 44-inch outside width, and an 8.0-cubic-foot SAE heaped capacity in a compact 26-inch-high by 26-inch-deep package. The bucket is configured with HLA’s BO500 quick-attach mount code and includes a 2-1/2 x 8-inch hydraulic cylinder to operate the grapple.

Compact Bucket with Hydraulic Grapple Control

The SGBC42 uses a single hydraulic grapple arm to help secure material within the bucket during handling. The grapple opens to a maximum of 35 inches, providing clearance for gathering material before closing it against the bucket load. Its compact dimensions make the attachment suitable for applications where a narrower bucket profile is required.

Capacity is rated at 6.3 cubic feet struck and 8.0 cubic feet SAE heaped. The bucket measures 42 inches across the inside, while the approximate outside width is 44 inches. Overall height and depth are both 26 inches, and the complete attachment weighs approximately 445 pounds.

Durable Bucket Construction

The bucket is manufactured from 3/16-inch material and reinforced with 1/4-inch end plates. At the working edge, a 3/4 x 4-inch beveled cutting edge provides a substantial front edge for loading operations. The bucket is also drilled to accept a standard bolt-on cutting edge, allowing an appropriate bolt-on edge to be fitted when required.

A 2-1/2 x 8-inch hydraulic cylinder is supplied for operation of the single grapple arm. Hydraulic hose kits are not listed as standard equipment; HLA offers optional 90-inch hose kits and an optional spring hose mount kit.

Key Features

• Compact hydraulic scrap grapple bucket from HLA Attachments
• 42-inch inside width and approximately 44-inch outside width
• Single grapple arm with a maximum 35-inch opening
• 6.3-cubic-foot struck capacity
• 8.0-cubic-foot SAE heaped capacity
• 3/16-inch bucket material with 1/4-inch end plates
• 3/4 x 4-inch beveled cutting edge
• Drilled for a standard bolt-on cutting edge
• Supplied with a 2-1/2 x 8-inch hydraulic cylinder
• 26-inch overall height and 26-inch overall depth
• Approximate attachment weight of 445 pounds
• Configured with HLA BO500 quick-attach mount code
• Optional 90-inch hydraulic hose kits and spring hose mount kit available from the manufacturer

Compatibility

This attachment is configured with HLA mount code BO500. HLA identifies BO500 as a quick-attach mount code used across multiple skid-steer-carrier loader applications. Because the mount code can be used with numerous loader applications, it does not identify one exact compatible loader by itself. Confirm the loader make, model, quick-attach interface, hydraulic connections, and operating capacity before ordering or installation.

Hydraulic Requirements

A 2-1/2 x 8-inch hydraulic cylinder is supplied with the grapple bucket. Hydraulic flow and pressure requirements are not published for this model. Hydraulic hose kits are listed by HLA as optional, including 90-inch hose kits, and a spring hose mount kit is also available as an option. Verify the host machine’s auxiliary hydraulic system and required hose configuration before use.
