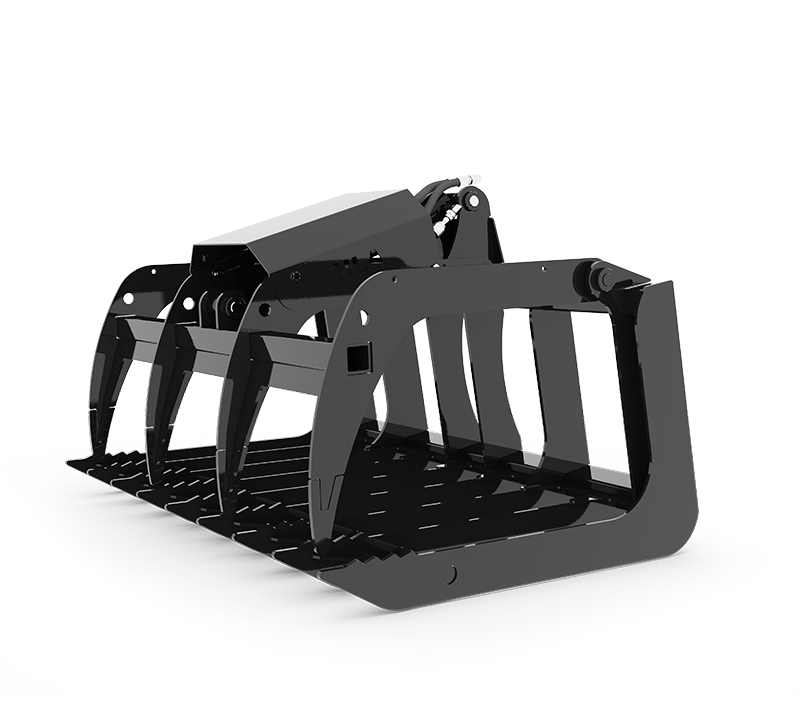

HLA Attachments - 36" Compact Brush Grapple - Hydraulic Material Handling [LA-BRGC36BO500]

HLA Attachments 36-Inch Compact Brush Grapple is a hydraulically operated material-handling attachment designed for brush and land-clearing work. Model BRGC36BO500 combines a compact 36-inch working width with a single grapple arm, closely spaced tines, and durable AR400 tine and grapple tips. Its BO500 universal skid-steer quick-attach configuration makes it suitable for compatible universal skid-steer quick-attach carriers, while a maximum opening of 38 inches provides useful capacity for gathering, holding, and moving brush and other land-clearing material.

Compact Hydraulic Material Handling

This compact grapple is built around a single-arm design operated by a 2-1/2-inch bore by 8-inch stroke hydraulic cylinder. The grapple opens up to 38 inches when measured from the ground to the grapple tip, allowing the arm to close over brush and material held by the lower tines.

The 36-inch nominal width is well suited to work where a compact attachment is preferred. With an overall height of 28 inches, an overall depth of 33 inches, and an approximate current catalogue weight of 375 pounds, the grapple provides a clearly defined package for equipment and attachment planning.

AR400 Contact Points

The tine tips and grapple tips are manufactured from AR400 material. These are the primary contact areas when the grapple is collecting, securing, and handling material. The lower tines are positioned at 6-inch intervals on center, creating a consistent tine arrangement across the grapple’s compact working width.

Key Features

• 36-inch nominal working width for compact brush and material-handling applications
• Hydraulically operated single grapple arm
• Maximum 38-inch opening from the ground to the grapple tip
• Tine tips and grapple tips manufactured from AR400 material
• Lower tines spaced 6 inches on center
• 2-1/2-inch bore by 8-inch stroke hydraulic cylinder
• BO500 universal skid-steer quick-attach mounting configuration
• Approximately 375-pound current catalogue weight
• Intended for brush handling and land-clearing work

Carrier Compatibility

The BRGC36BO500 is configured with the BO500 universal skid-steer quick-attach interface. It is compatible with carriers equipped with a corresponding universal skid-steer quick-attach system. Confirm the carrier’s attachment interface before purchase or installation.

Optional Hydraulic Accessories

An optional 90-inch hose kit with flat-faced couplers is available for the grapple. An optional spring hose-mount kit is also available. These are optional accessories rather than standard specifications of the grapple.
