HLA Attachments - 84" Stone Fork Regular Duty with Split Grapple - Stone and Debris Handling [LA-SFRDB84BO500]

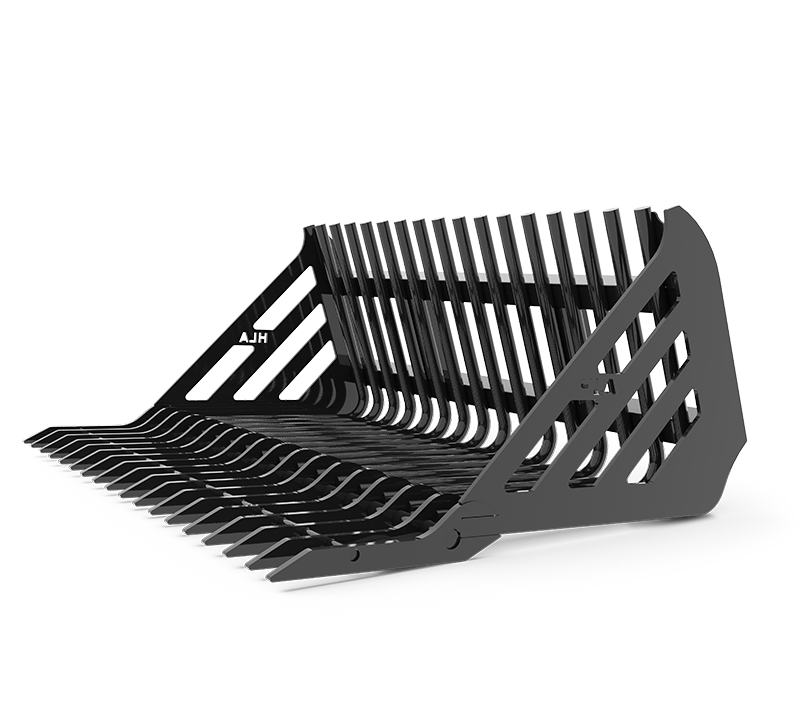

HLA Attachments SFRDB84BO500 84-Inch Regular-Duty Stone Fork with Split Grapple is built for efficient stone, debris, brush and rock cleanup with loaders using the HLA BO500 quick-attach mounting configuration. Its retainer-style stone fork combines closely spaced, heavy-duty tines with two independently operating hydraulic grapples, helping secure irregular, awkward and abrasive loads during collection and transport. With an 84-inch working width and a rated capacity of up to 5,500 lb, this attachment provides broad coverage and dependable material retention for property cleanup, site preparation, landscaping, agricultural work and general material handling.

Controlled Handling of Stone, Brush and Debris

The SFRDB84 is designed to pick up rocks, brush and mixed debris while allowing loose soil and smaller material to pass between the tines. Its 1-1/4-inch-diameter tines are arranged with 2-1/2-inch spacing, providing a close working surface for separating and retaining material. The points are manufactured from 5/8-inch-thick, 400 Brinell high-strength steel for work involving abrasive and demanding loads.

Two independent grapples help the attachment conform to uneven or mixed loads. Because each grapple operates independently, the fork can retain materials of different shapes or heights across its width. This split-grapple arrangement is particularly useful when handling brush piles, rocks and other bulky loads that may not sit evenly on a conventional bucket or fork.

Regular-Duty Retainer-Style Construction

This regular-duty stone fork has a nominal attachment width of 84 inches, an overall height of 30 inches and an overall depth of 40 inches. The base attachment has an approximate listed weight of 1,315 lb and a rated capacity of up to 5,500 lb. Two 2-1/2 x 8-inch hydraulic cylinders operate the split grapple assembly.

The retainer-style design helps contain material on the fork during loader movement. It is suited to cleanup applications where the operator needs to gather, separate, secure and relocate stone, branches or debris with one attachment.

Key Features

• 84-inch regular-duty retainer-style stone fork
• Designed for brush, rock, stone and debris cleanup
• Two independently operating hydraulic grapples for uneven loads
• Rated capacity of up to 5,500 lb
• 1-1/4-inch-diameter tines
• 2-1/2-inch spacing between tines
• 5/8-inch-thick points made from 400 Brinell high-strength steel
• Two 2-1/2 x 8-inch hydraulic cylinders
• HLA BO500 quick-attach mounting configuration
• Optional hose and hose-mount kits available

Compatibility

The SFRDB84BO500 is configured with the HLA BO500 quick-attach mount. BO500 is used for multiple skid-steer-style and other quick-attach loader carriers. Exact compatibility is loader-specific and must be confirmed against HLA’s applicable mounting guide before ordering.

The carrier should also be suitable for the attachment’s approximate 1,315 lb weight and intended load. The manufacturer does not state whether the BO500 mount changes the listed approximate weight of the base SFRDB84 attachment.

Hydraulic Requirements

Loader auxiliary hydraulics are required to operate the two independent grapples. The attachment is supplied with two 2-1/2 x 8-inch hydraulic cylinders. Required hydraulic flow and pressure are not specified, and standard hoses and couplers are not listed as included. Optional 90-inch hose kits and a spring hose-mount kit are available.

Specifications

Optional Equipment

• HK90: 90-inch hose kit with flat-faced couplers
• HK9090: 90-inch hose kit with 90-degree flat-faced couplers
• SHMK: Spring hose-mount kit
