HLA Attachments - 84" Manure Fork Kverneland Tines and GRS72 Grapple 8 1/8" - Hydraulic Material Handling [LA-MFE84GRS72BO500]

SKU LA-MFE84GRS72BO500

Starting at: Starting at $4,605.⁰⁰

Starting at: Starting at $4,605.⁰⁰

Add your items to the Cart to begin to build and price your package.

When you're ready to take the next step, please reach out to us for a quote, or complete the checkout process to reserve your items in store. (The online checkout just emails us a copy of the items you are interested in, we then reach out to you to confirm everything.)

Showing pricing online is difficult, here's why:
*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Online pricing does not include freight, assembly, finance, delivery, or pdi fees.
*Our manufacturer's pricing is subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

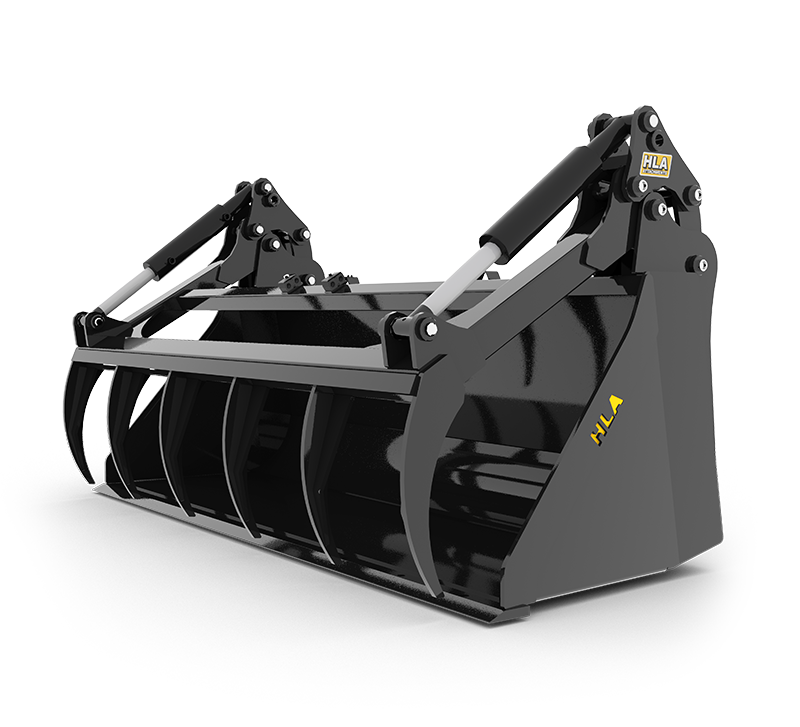

HLA Attachments MFE84GRS72 Manure Fork with GRS72 Grapple and BO500 Mount is a hydraulic material-handling attachment built around an 84-inch fork, 11 cranked Kverneland tines, and a 72-inch skid-steer grapple. Designed for skid steers where grapple-arm clearance is limited, this package combines superior tine penetration with a hydraulically operated grapple that opens to 46 inches. The BO500 mounting configuration provides a universal skid-steer-style quick-attach interface, making the attachment suitable for manure and livestock material-handling applications where controlled pickup and retention are important.

84-Inch Manure Fork with Kverneland Tines

The MFE-series fork uses 35-inch Conus I cranked Kverneland tines with a usable length of 31 inches. Eleven tines are arranged on 8-1/8-inch centres across the 84-inch fork width. Their cranked profile is designed to provide superior penetration, helping the fork enter and handle material effectively.

A flat top on the attachment also acts as a level indicator. This gives the operator a convenient visual reference when positioning the fork during loading and handling.

GRS72 Hydraulic Skid-Steer Grapple

The integrated GRS72 grapple has a nominal width of 72 inches and opens to a maximum of 46 inches. It is powered by two 2-1/2 by 8-inch hydraulic cylinders, providing hydraulic grapple operation from the loader’s auxiliary hydraulic system.

The grapple configuration is specifically designed for skid steers with limited clearance for grapple arms. Together, the fork and grapple form a practical material-handling package for securing and controlling manure and other livestock-related material during movement.

Key Features

84-inch MFE-series manure fork
72-inch nominal GRS72 skid-steer grapple
Maximum grapple opening of 46 inches
Eleven cranked Kverneland fork tines
35-inch tine length with 31 inches of usable length
8-1/8-inch tine centres
Conus I cranked tine design for superior penetration
Two 2-1/2 by 8-inch hydraulic cylinders
Designed for skid steers with limited grapple-arm clearance
Flat top functions as a level indicator
BO500 universal skid-steer-style quick-attach mount
Approximate attachment weight of 845 lb

Compatibility

This MFE84GRS72 package is supplied with the BO500 mounting configuration for universal skid-steer-style quick-attach carriers. It is designed for skid steers with limited clearance for grapple arms. Confirm the carrier’s mounting interface, auxiliary hydraulic capability, and operating capacity before installation or use.

Hydraulic Requirements

Loader auxiliary hydraulics are required to operate the grapple. Hydraulic flow and pressure requirements are not published. A hydraulic hose kit is optional rather than included as a stated standard component.

Available optional hose configurations include the HK90 90-inch hose kit with flat-faced couplers and the HK9090 90-inch hose kit with 90-degree flat-faced couplers. An SHMK spring hose mount kit is also available as an optional accessory.

Specifications

Brand	HLA Attachments
Model	MFE84GRS72 with BO500 mount
Product type	Hydraulic manure fork with skid-steer grapple
Manufacturer base part number	MFE84GRS72
Mounting code	BO500
Mounting interface	Universal skid-steer-style quick attach
Fork width	84 in
Grapple model	GRS72
Grapple width	72 in nominal
Maximum grapple opening	46 in
Fork tine count	11
Tine centres	8-1/8 in
Tine type	Conus I cranked Kverneland
Tine overall length	35 in
Tine usable length	31 in
Hydraulic cylinders	Two, 2-1/2 × 8 in
Weight	845 lb approximate
Product code	LA-MFE84GRS72BO500
