HLA Attachments - 7,500 lb Heavy Duty Pallet Fork with Guard - Tines 72" - Material Handling Fork Attachment [LA-HD7572BO500]

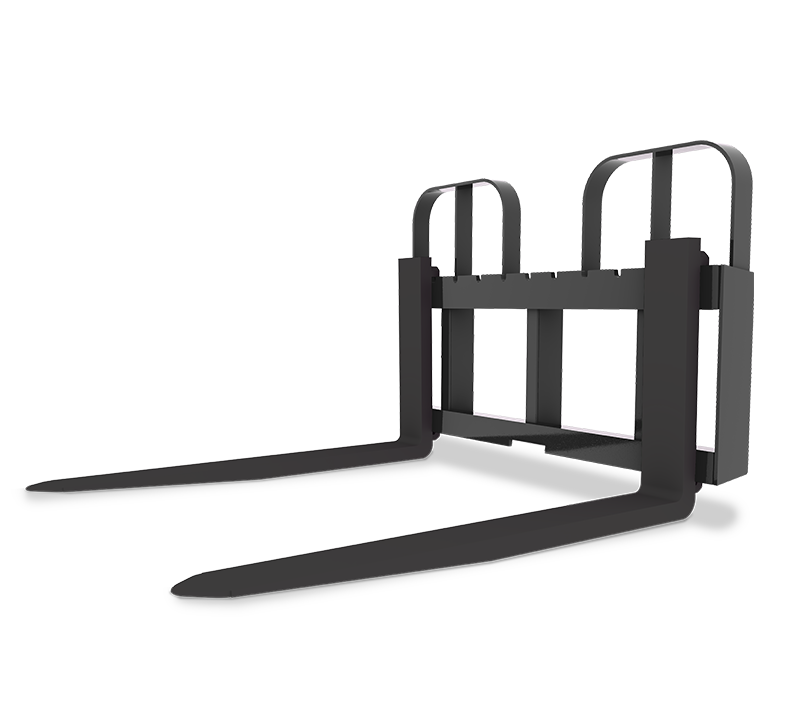

HLA Attachments HD7572BO500 Heavy-Duty Pallet Fork with Guard is a high-capacity material-handling attachment designed for loader applications requiring long, durable forklift tines and flexible load positioning. Rated to handle up to 7,500 lb at a 24-inch load center, this pallet fork combines 72-inch Class III solid tines with a 50-inch carriage and an included guard. Its sliding, adjustable tines can be locked in any position along the carriage, allowing the attachment to accommodate different pallets, bundled materials and other loads. The BO500 mounting configuration provides a skid-steer-style quick-attach interface for compatible loader carriers.

Heavy-Duty Material Handling

The HD7572BO500 is built around a pair of solid, hook-type forklift tines. Each tine measures 72 inches long and has a substantial 1-3/4 by 5-inch cross section. The extended tine length is useful when working with deep pallets or loads that require additional reach and support.

Capacity is rated at 7,500 lb when the load center is positioned 24 inches from the carriage. Correct load placement is important when handling materials, as actual lifting performance also depends on the capabilities and operating limits of the host loader.

Adjustable Tine Positioning

The sliding tines can be moved across the 50-inch carriage to suit different load widths. Once positioned, the tines lock in place, helping the operator establish an appropriate spacing for pallets and other supported materials. This adjustable arrangement makes the attachment suitable for varied material-handling jobs without permanently fixing the tine spacing.

An included guard provides a protective structure above the carriage. For applications requiring additional load-retention coverage, a full back guard—also described as a brick guard—is available as an optional configuration.

Key Features

• Heavy-duty pallet fork attachment from HLA Attachments
• Rated capacity of 7,500 lb at a 24-inch load center
• 72-inch-long solid forklift tines for supporting deep loads
• Class III hook-type tine design
• Heavy 1-3/4 by 5-inch tine cross section
• 50-inch-wide carriage
• Sliding tines adjust across the carriage
• Tines lock in any selected position
• Guard included
• Optional full back guard, or brick guard, available
• BO500 skid-steer-style quick-attach mounting configuration
• Approximate attachment weight of 730 lb

BO500 Quick-Attach Configuration

This model is the HD7572 base attachment equipped with HLA’s BO500 mounting configuration. The BO500 interface is a skid-steer-style quick-attach mount designed for compatible loader carriers. The mounting code is an important part of the complete model designation and distinguishes this version from HD7572 pallet forks supplied with other mounting arrangements.

Compatibility

The HD7572BO500 is compatible with loader carriers that use the HLA BO500 skid-steer-style quick-attach mount. Loader mounting systems can vary by manufacturer, model and configuration, so the loader model should be confirmed against HLA’s Loader Order Mounting Codes before ordering. The loader must also be suitable for the attachment’s approximately 730 lb weight and the intended load.
