HLA Attachments - 5,500 lb 5500 lbs Carriage Only Less Tines - Material Handling Fork Attachment [LA-HDS55BO500]

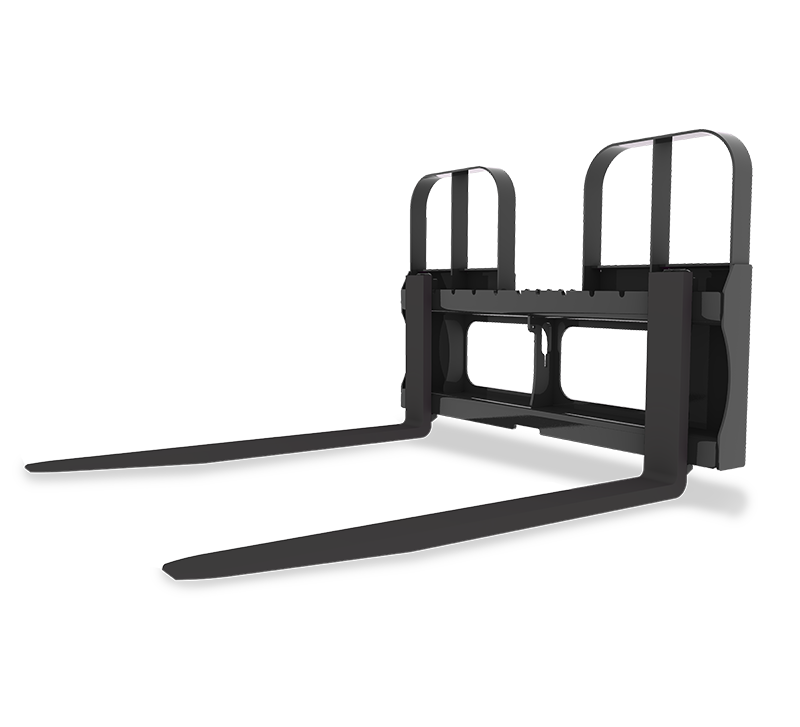

HLA Attachments HDS55BO500 Hydraulic Side-Shift Pallet-Fork Carriage is a heavy-duty material-handling attachment designed for compatible Woods loaders equipped with the BO500 quick-attach interface. Rated for a 5,500 lb carriage capacity, it combines an adjustable pallet-fork carriage with hydraulic side shifting for precise lateral positioning. The carriage travels a total of 16 inches—8 inches to the right and 8 inches to the left—making it easier to align the forks with pallets and other loads. This model is supplied as a carriage only; fork tines are not included.

Hydraulic Side Shift for Accurate Positioning

The HDS55 carriage features hydraulic side-shift operation, allowing the carriage to move laterally across the loader. Its 16-inch total travel range provides up to 8 inches of adjustment in either direction. This lateral movement is especially useful when approaching pallets, positioning adjustable fork tines, or making alignment corrections during material-handling work.

Because the side-shift function is incorporated into the carriage, operators can adjust the fork position from side to side while using the loader. The result is a practical pallet-fork platform for applications where controlled placement and efficient load alignment are important.

5,500 lb Rated Carriage Capacity

Built around the HLA Attachments HDS55 base carriage, this model has a rated carriage capacity of 5,500 lb. Its heavy-duty configuration is intended for demanding pallet and material-handling applications when used with an appropriately matched loader, fork tines, and operating setup.

The adjustable-tine carriage design allows compatible pallet-fork tines to be positioned to suit different pallet and load widths. As this is a carriage-only configuration, tines must be selected separately for the intended application.

Key Features

• HLA Attachments HDS55 hydraulic side-shift pallet-fork carriage
• Rated carriage capacity of 5,500 lb
• Hydraulic carriage side-shift operation
• 16 inches of total lateral travel
• Moves up to 8 inches to the right or 8 inches to the left
• Designed for use with adjustable pallet-fork tines
• BO500 quick-attach interface
• Verified for specified Woods loader models
• Carriage-only package; fork tines are not included

BO500 Loader Compatibility

The HDS55BO500 is configured with the BO500 quick-attach interface. It is compatible with the following Woods loaders when equipped with the BO500 quick-attach connection:

• Woods LC96 loader
• Woods LC102 loader
• Woods LC108 loader
• Woods 1016 loader
• Woods 1020 loader
• Woods 1027 loader

Confirm that the loader has the BO500 quick-attach interface before ordering. Compatibility is based on both the listed loader model and the required BO500 attachment connection.

Carriage-Only Configuration

Product code LA-HDS55BO500 includes the hydraulic side-shift carriage in the BO500 configuration but does not include fork tines. This format allows the carriage to be paired with separately selected adjustable tines suited to the required material-handling application. Because tines are excluded, no tine length applies to this package.
