HLA Attachments - 4200 lbs Power Tine Pallet Fork 48" - Material Handling Fork Attachment [LA-HDN4248BO500]

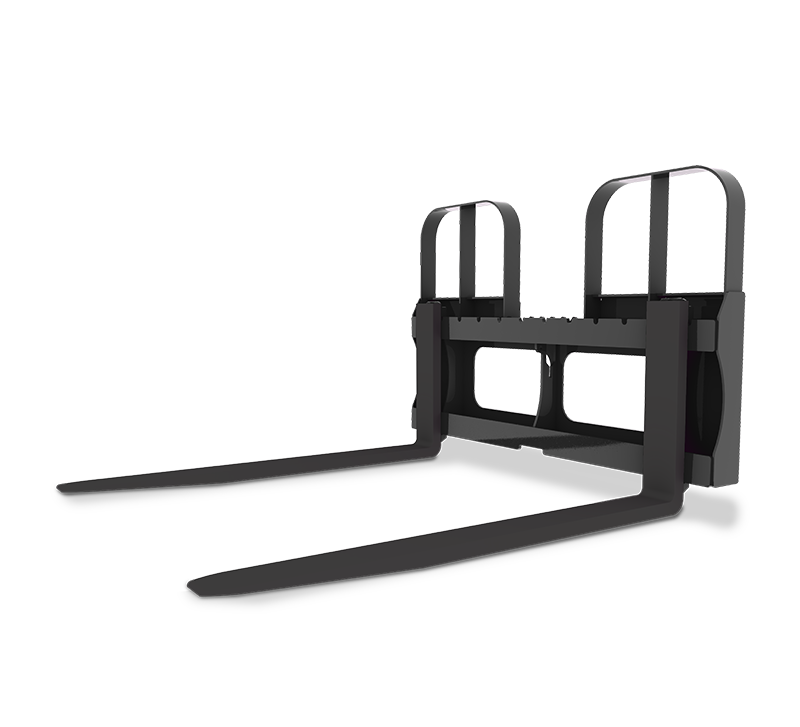

HLA Attachments HDN4248 Power Tine Pallet Fork with BO500 Mount is a hydraulic material-handling attachment designed for loaders and skid steers using a compatible skid-steer-style quick-attach carrier. Configured under product code LA-HDN4248BO500, it combines a 4,200 lb capacity carriage with 48-inch hydraulically sliding tines. The powered tines move inward and outward equally, allowing the operator to adjust tine spacing hydraulically for pallet handling and clamping applications such as moving nursery root balls.

Hydraulic Power-Tine Adjustment

The HDN4248 uses hydraulic power to slide both tines inward or outward equally. This synchronized movement makes it possible to reposition the tines without relying on manual tine adjustment. The changing tine spacing can accommodate different loads and provides a clamping action for appropriate materials.

In addition to conventional pallet-handling work, the fork is suitable for clamping applications such as handling nursery root balls. Its 48-inch tines provide the specified fork length for this configuration, while the carriage is rated for a capacity of 4,200 lb.

Key Features

• 4,200 lb rated-capacity carriage
• 48-inch pallet-fork tines
• Hydraulically sliding tine adjustment
• Both tines move inward and outward equally under hydraulic power
• Suitable for pallet handling and clamping applications
• Can be used for handling nursery root balls
• BO500 skid-steer-style quick-attach mount
• Approximate attachment weight of 700 lb
• Optional 90-inch hose kit with flat-faced couplers available
• Optional spring hose mount kit available

Material-Handling Applications

This HLA Attachments power-tine pallet fork is intended for material-handling jobs where hydraulic tine positioning can improve versatility. The tines can be moved closer together or farther apart as a synchronized pair, supporting work with pallets and loads that require different tine spacing. Their powered inward movement also allows the attachment to be used for suitable clamping tasks, including nursery root-ball handling.

Compatibility

The LA-HDN4248BO500 is configured with HLA mounting code BO500, which provides a skid-steer-style quick-attach interface. It is intended for loaders and skid steers equipped with a corresponding quick-attach carrier. BO500 is used across multiple loader brands and models, so carrier fit must be confirmed for the specific machine before ordering or installation.

Optional Equipment

An HK90 hose kit is available as an option. This kit includes 90-inch hoses complete with flat-faced couplers. An optional SHMK spring hose mount kit is also available to provide hose support. These kits are optional accessories rather than standard components of the configured attachment.

Specifications
