HLA Attachments - 4,200 lb 4200 lbs Side Shift Pallet Fork 42" - Material Handling Fork Attachment [LA-HDS4242BO500]

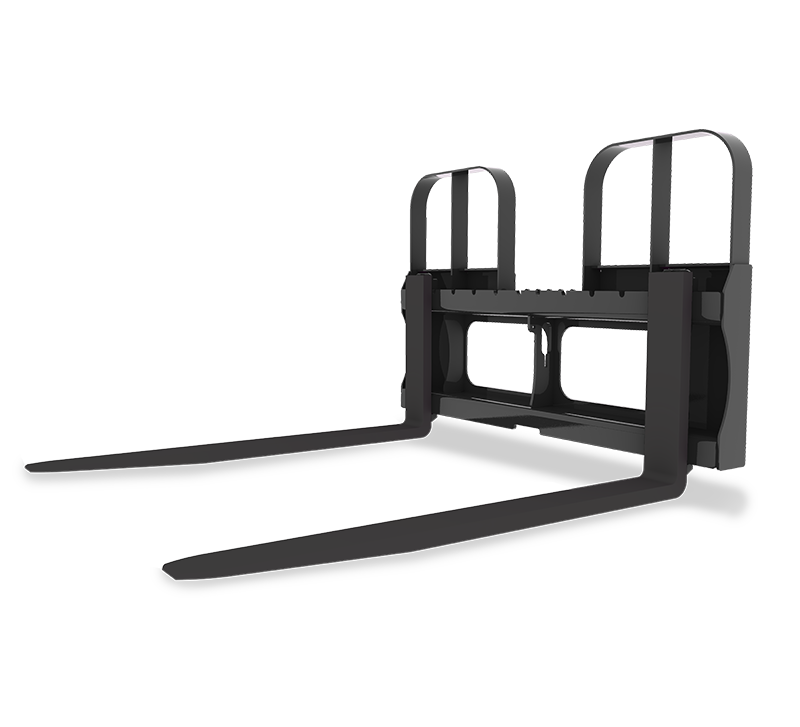

HLA Attachments HDS4242BO500 Hydraulic Side-Shift Pallet Fork combines a 4,200 lb rated capacity with 42 in adjustable fork tines and hydraulic side shifting for efficient material handling. Configured with the BO500 quick-attach mounting interface, this attachment allows the operator to reposition the fork carriage hydraulically by up to 8 in in either direction. It is well suited to loading, unloading, stacking, and positioning palletized or supported materials where precise lateral fork placement is important.

Hydraulic Side Shift for Precise Positioning

The hydraulic carriage provides 16 in of total side-shift travel, with 8 in of movement to the right and 8 in to the left. This lateral adjustment helps align the fork tines with pallets or loads without requiring the operator to repeatedly reposition the entire loader. An auxiliary hydraulic circuit is required to operate the side-shift function.

For hydraulic connection, HLA Attachments offers the optional HK90 hose kit. This kit includes 90 in hoses with flat-faced couplers. The hose kit is optional and should be selected according to the loader and hydraulic connection arrangement.

4,200 lb Capacity and Adjustable 42 in Tines

The HDS4242 has a rated lifting capacity of 4,200 lb and is equipped with 42 in fork tines. The tine positions are adjustable, allowing the spacing to be changed for different pallets, loads, and material-handling tasks. This combination of capacity, tine length, and adjustability makes the attachment a practical choice for handling a variety of supported materials.

The attachment has an approximate weight of 730 lb. Loader capacity, attachment weight, load weight, and operating conditions should all be considered when selecting and using a pallet-fork attachment.

Key Features

• 4,200 lb rated capacity
• Hydraulic carriage side shift for lateral fork positioning
• 16 in total side-shift travel
• 8 in of hydraulic movement to the right and 8 in to the left
• 42 in fork tines
• Adjustable tine positioning
• BO500 quick-attach mounting interface
• Approximate attachment weight of 730 lb
• Optional HK90 90 in hydraulic hose kit with flat-faced couplers

Specifications

Loader Compatibility

This configuration uses the BO500 quick-attach mounting interface. HLA Attachments currently lists BO500 for the following quick-attach loaders:

• Terex TL60
• Terex TL65
• Terex TL70
• New Holland 16LA

Compatibility is based on the loader having the corresponding BO500 quick-attach interface.

Hydraulic Requirements

An auxiliary hydraulic circuit is required to operate the hydraulic carriage side shift. A hydraulic flow or pressure requirement is not specified for this attachment. The optional HK90 kit provides 90 in hoses with flat-faced couplers for the hydraulic connection.
