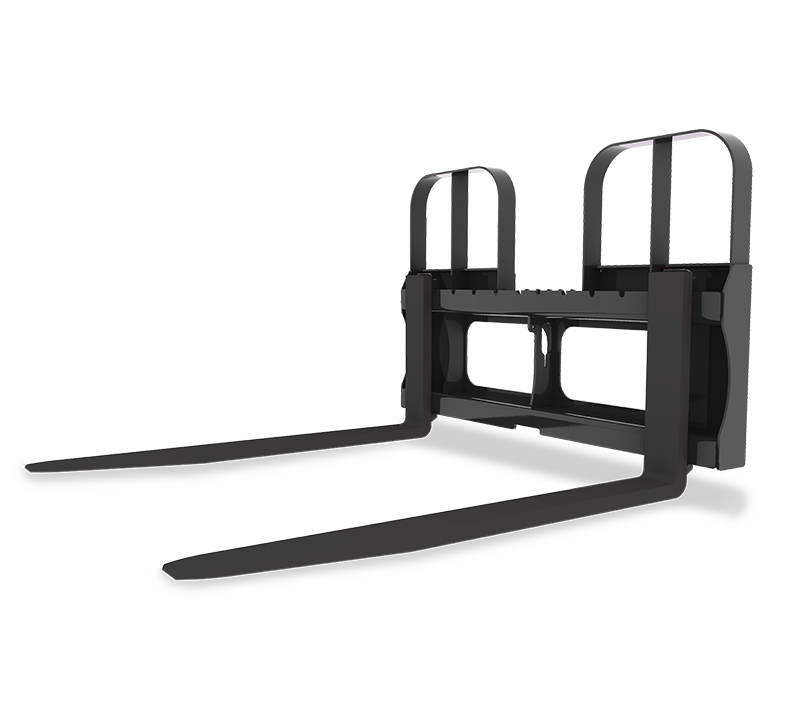

HLA Attachments - 4,200 lb 4200 lbs Rotating Pallet Fork 42" - Material Handling Fork Attachment [LA-HDR4242BO500]

HLA Attachments HDR4242-BO500 Rotating Pallet Fork is a hydraulic material-handling attachment built around a manufacturer-rated 4,200 lb capacity, 42-inch adjustable fork tines and 180-degree left-hand rotation. Designed for loaders and skid steers matched to the HLA BO500 mounting code, it combines conventional pallet-fork handling with cylinder-powered rotation for smooth, contoured operation. The rotating carriage allows the attachment to complete a full dump to the left, making it a versatile option for applications that require both lifting and controlled load rotation.

Hydraulic Rotation for Material Handling

The HDR4242 uses a hydraulic cylinder to power its rotating action. The attachment rotates through 180 degrees to the left, providing the range needed for a full left-side dump. Its cylinder-powered design delivers smooth, contoured movement while handling compatible loads.

In addition to its rotating function, this model features adjustable fork tines. Their position can be changed to suit different pallet and load dimensions within the attachment’s rated capacity and the operating limits of the host machine. The 42-inch tine length provides a practical platform for palletized materials and other suitable loads.

BO500 Quick-Attach Configuration

This product is configured with the HLA BO500 quick-attach mount. BO500 is an HLA mounting code used across numerous loader and skid-steer quick-attach applications. Because the same mounting code may apply to multiple machines, compatibility must be confirmed using the applicable HLA mounting-code tables before ordering.

Key Features

• Manufacturer-rated 4,200 lb capacity
• 42-inch fork tines
• Adjustable tine positioning for different compatible loads
• Hydraulic-cylinder-powered rotation
• Smooth, contoured rotating operation
• Rotates 180 degrees for a full dump to the left
• HLA BO500 quick-attach mounting configuration
• Approximate base HDR4242 weight of 825 lb

Applications

The HLA HDR4242-BO500 is intended for hydraulic material-handling work where an operator needs pallet-fork functionality together with left-hand load rotation. Its adjustable tines support handling of appropriately sized palletized or fork-supported materials, while the rotating carriage enables controlled repositioning and dumping to the left.

The attachment’s rated capacity applies to the HDR4242 model. Actual operating capability also depends on the loader or skid steer, its rated operating limits, the selected tine spacing, load dimensions and load placement.

Compatibility

This rotating pallet fork is compatible with loaders and skid steers assigned the HLA BO500 mounting code in the applicable HLA mounting-code catalogue. The BO500 designation should not be treated as universal compatibility. Confirm the exact machine make, model and quick-attach interface against HLA’s mounting-code tables before purchase or installation.

Optional Hydraulic Accessories

• HK90: Optional 90-inch hose kit with flat-faced couplers
• SHMK: Optional spring hose mount kit for hose management
