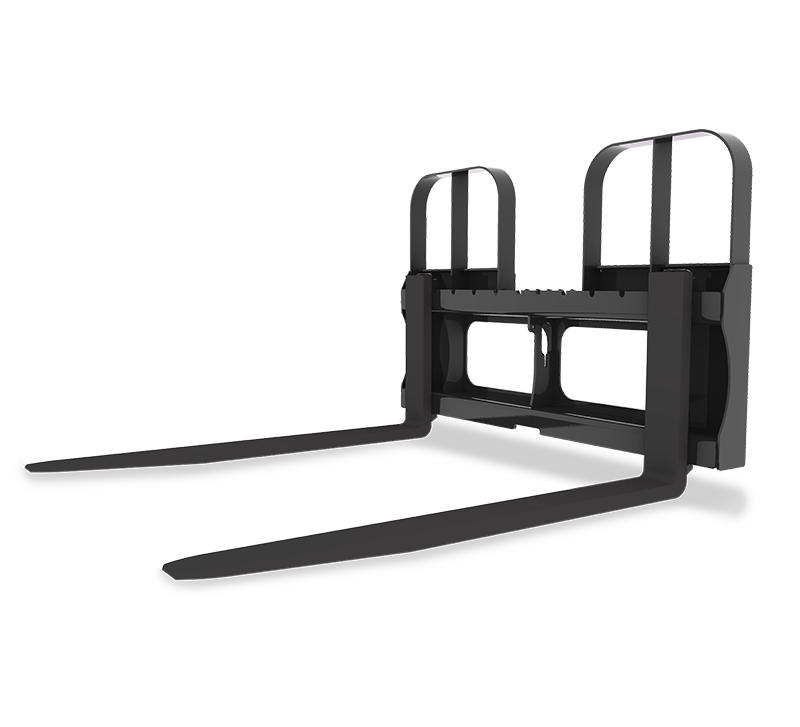

HLA Attachments - 2,000 lb 2000 lbs Rotating Pallet Fork 42" - Material Handling Fork Attachment [LA-HDR2042BO500]

HLA Attachments HDR2042BO500 Rotating Pallet Fork is a hydraulic material-handling attachment designed to lift, position and dump loads with greater control. Rated at 2,000 lb, it combines 42-inch adjustable tines with hydraulic cylinder-powered rotation through 180 degrees to the left, allowing a full left-side dump without requiring the operator to manually reposition the attachment. The BO500 skid-steer-style quick-attach mount makes this configuration suitable for compatible loaders and skid steers used in material handling, loading and controlled dumping applications.

Hydraulic Rotation for Controlled Material Handling

The HDR2042 uses a hydraulic cylinder to provide smooth, contoured rotation. Its 180-degree left rotation range allows the fork assembly to move from the standard carrying position through to a full dump to the left. This capability can be useful when a load must be lifted and then tipped or discharged beside the carrier rather than simply transported on level forks.

Hydraulic power allows the operator to control rotation from the carrier, subject to the hydraulic controls and connections available on the host machine. A hydraulic connection is required to operate the rotation cylinder. Specific hydraulic flow, pressure and coupler requirements are not specified for this configuration.

Adjustable 42-Inch Tines

The attachment is equipped with 42-inch adjustable tines. Their adjustable positioning allows the fork spacing to be configured for different loads within the attachment’s rated capacity and operating limits. The combination of adjustable tines and powered rotation gives the HDR2042BO500 versatility for pallet handling and other compatible material-handling tasks where controlled left-side dumping is required.

Key Features

• 2,000 lb rated rotating pallet-fork attachment
• Hydraulic cylinder-powered rotation for smooth, contoured operation
• Rotates 180 degrees to the left for a full dump
• 42-inch tines for material-handling applications
• Adjustable tine positioning
• BO500 skid-steer-style quick-attach mount
• Approximate attachment weight of 815 lb
• Designed for compatible loaders and skid steers with the required carrier and hydraulic connection

Specifications

Carrier Compatibility

This BO500 configuration is compatible with loaders and skid steers equipped with a skid-steer-style quick-attach carrier that accepts the HLA BO500 mounting configuration. Before installation, confirm that the host machine’s carrier, operating capacity and hydraulic system are suitable for the attachment and intended load.

Hydraulic Requirements

A hydraulic connection is required to power the rotation cylinder. Hydraulic flow, operating pressure and coupler specifications have not been established for this configuration, so these details should be confirmed for the specific loader or skid steer before use.

Optional Hydraulic Accessories

• HK90: Optional 90-inch hydraulic hose kit with flat-faced couplers
• SHMK: Optional spring hose mount kit for hose support

With its 2,000 lb rating, adjustable 42-inch tines and hydraulically controlled 180-degree left-dump action, the HLA HDR2042BO500 provides a purpose-built solution for operators who need pallet-fork handling combined with controlled load rotation on a compatible quick-attach carrier.
