HLA Attachments - 10,000 lb Heavy Duty Pallet Fork with Guard - Tines 72" - Material Handling Fork Attachment [LA-HD10072BO500]

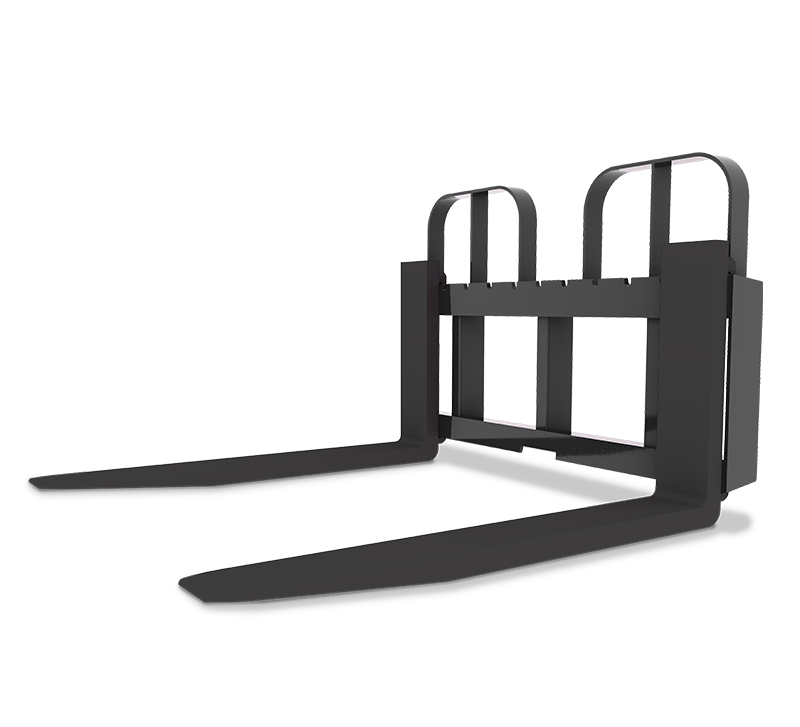

HLA Attachments HD10072BO500 10,000 lb Heavy-Duty Pallet Fork with Guard is a high-capacity material-handling attachment designed for demanding pallet, bulk-material and equipment-handling applications. This configuration combines a 50-inch carriage with two 72-inch solid forklift tines and an included guard. Its BO500 universal skid-steer-style quick-attach interface provides compatibility with corresponding loader carriers, while sliding, laterally adjustable tines allow the fork spacing to be set for different loads and locked securely in any position.

Heavy-Duty Material Handling

The HD10072 is rated to carry up to 10,000 lb at a 24-inch load center. Two Class III hook-type solid forklift tines provide the strength and reach required for handling large pallets and other substantial loads. Each tine measures 2 inches by 6 inches in cross section and is 72 inches long.

A 50-inch-wide carriage supports the adjustable tine system. The tines slide laterally across the carriage, allowing operators to match the spacing to the load rather than working with a fixed fork position. Once adjusted, the tines can be locked in any position. A standard guard is included, and an optional full back guard, also described as a brick guard, is available for applications requiring a larger backrest.

Key Features

• 10,000 lb rated capacity at a 24-inch load center
• Two 72-inch solid forklift tines
• Class III hook-type tine construction
• Heavy-duty 2-inch by 6-inch tine cross section
• 50-inch carriage width
• Sliding, laterally adjustable tine spacing
• Tines lock in any position on the carriage
• Standard guard included
• Optional full back guard or brick guard available
• BO500 universal skid-steer-style quick-attach interface

BO500 Quick-Attach Compatibility

This pallet fork is supplied in the BO500 mounting configuration, identified by HLA Attachments as a universal skid-steer-style quick-attach interface. HLA lists BO500 quick-attach versions for multiple loader models from New Holland, John Deere, Kubota, Case IH, Massey Ferguson, Terex, Woods and other manufacturers.

Compatibility depends on the quick-attach carrier installed on the loader, not solely on the equipment brand. Confirm that the specific loader model uses a carrier corresponding to HLA mount code BO500 before ordering. The loader and carrier must also be suitable for the attachment weight, load center and intended load.

Specifications

Weight and Configuration Note

HLA publishes an approximate weight of 840 lb for the HD10072 fork assembly. A separate total assembled weight for the complete HD10072BO500 configuration, including the BO500 mounting interface, is not published. Loader capacity should be evaluated with the attachment weight, 24-inch rated load center, load weight and operating conditions taken into account.
