HLA Attachments - 96" High Dump Bucket Standard - Hydraulic High-Dump Loader Bucket [LA-HRB96BO500]

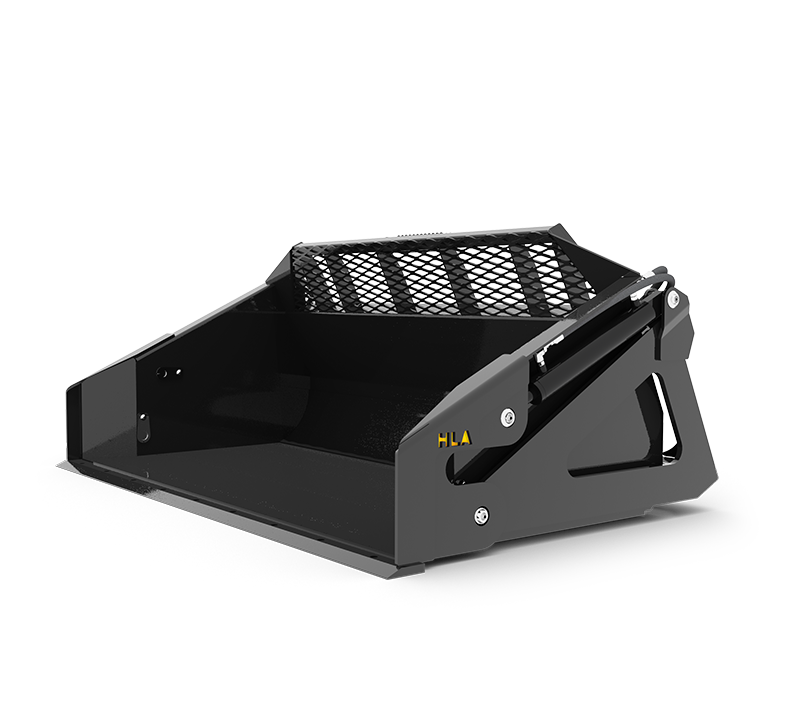

HLA Attachments HRB96BO500 96-Inch Standard Hydraulic High-Dump Loader Bucket combines high-capacity material handling with up to 48 inches of additional dump-out height. Designed for loaders using the BO500 universal skid-steer quick-attach configuration, this standard-profile bucket measures 96 inches across and offers a 29.9 cu. ft. struck capacity and 39.9 cu. ft. SAE heaped capacity. Its hydraulic high-dump action helps place material into taller containers, trucks, spreaders, and other elevated receiving areas where a conventional loader bucket may not provide sufficient dumping clearance.

More Dump Height for Material-Handling Work

The HRB96 high-dump bucket can raise dump-out height by up to 48 inches, extending the loader’s material-placement capability without changing the bucket’s nominal 96-inch outside width. This added reach is useful when loading over high sides or discharging material at an elevated point.

With a standard bucket profile measuring 39 inches deep and 29 inches high, the HRB96 provides substantial capacity while maintaining a practical shape for loading and cleanout. Its exclusive flat-bottom design is intended to make cleanout easier without sacrificing capacity, helping reduce the amount of material left behind after dumping.

Controlled Hydraulic Dumping

The bucket’s hydraulic high-dump design provides the additional dumping movement required to discharge above the loader’s normal bucket pivot range. A Soft Stop Cylinder helps reduce vibration during operation, supporting smoother movement as the bucket cycles through its dumping action.

The bucket is also drilled to accept a standard bolt-on cutting edge. This provides a prepared mounting arrangement for fitting a compatible cutting edge when required for the application.

Key Features

• Hydraulic high-dump loader bucket with a standard-profile design
• 96-inch nominal outside width
• Raises dump-out height by up to 48 inches
• 29.9 cu. ft. struck capacity
• 39.9 cu. ft. SAE heaped capacity
• Exclusive flat-bottom design supports easier cleanout without sacrificing capacity
• Standard bucket profile is 39 inches deep and 29 inches high
• Soft Stop Cylinder helps reduce vibration
• Drilled for a standard bolt-on cutting edge
• BO500 universal skid-steer quick-attach mounting configuration

Compatibility

The BO500 mount code identifies HLA Attachments’ universal skid-steer mounting pattern. This HRB96BO500 bucket is configured for universal skid-steer quick-attach loaders. The loader and attachment interface should be checked before purchase to confirm that the machine uses the corresponding universal skid-steer quick-attach connection.

Capacity and Construction Profile

The HRB96 has a manufacturer-listed struck capacity of 29.9 cubic feet and an SAE heaped capacity of 39.9 cubic feet. These ratings provide two useful measures of bucket volume: struck capacity represents material level with the bucket’s upper boundary, while SAE heaped capacity represents a standardized heaped load. The bucket’s 39-inch depth and 29-inch height form its standard profile, balancing carrying volume with cleanout access.

Manufacturer information lists the HRB96 base model at approximately 1,190 pounds. No separate weight adjustment is published for the BO500 mounting configuration, so the listed weight should be treated as an approximate reference when evaluating loader capacity and operating limits.

Specifications
