HLA Attachments - 96" High Dump Bucket High Volume - Hydraulic High-Dump Loader Bucket [LA-HRBHV96BO500]

SKU LA-HRBHV96BO500

Starting at: Starting at $6,990.⁰⁰

Starting at: Starting at $6,990.⁰⁰

Add your items to the Cart to begin to build and price your package.

When you're ready to take the next step, please reach out to us for a quote, or complete the checkout process to reserve your items in store. (The online checkout just emails us a copy of the items you are interested in, we then reach out to you to confirm everything.)

Showing pricing online is difficult, here's why:
*Pricing shown at MSRP and may not include available Timberstar Tractor or Manufacturer discounts.
*Finance rates, payment calculations, whether or not you need a down payment, all available through our sales staff.
*Online pricing does not include freight, assembly, finance, delivery, or pdi fees.
*Our manufacturer's pricing is subject to change without notice.
*Manufacturer sales promotions valid unitl the end of the month they were issued in.
*Price match available for many brands we carry.

Description

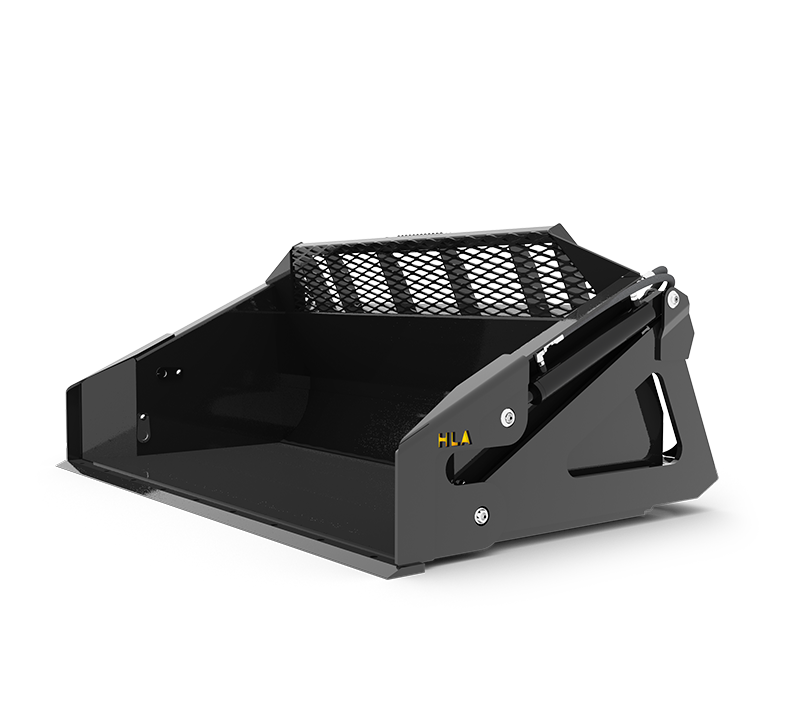

HLA Attachments HRBHV96BO500 96-Inch High-Volume Hydraulic High-Dump Bucket combines substantial material capacity with hydraulic high-dump operation for applications where additional discharge height is valuable. Its 96-inch outside width, 40.3 cu ft struck capacity, and 49.0 cu ft SAE heaped capacity make it well suited to handling high-volume materials. The high-dump mechanism can increase dump-out height by up to 48 inches, helping operators load into higher-sided containers, trucks, or receiving areas that may be difficult to reach with a conventional bucket. This configuration includes the BO500 universal skid-steer quick-attach mount.

High-Volume Material Handling

The HRBHV96 bucket has a high-volume profile measuring 39 inches deep by 33 inches high. Its exclusive flat-bottom design is intended to make cleanout easier without sacrificing bucket capacity. This combination of volume, width, and cleanout-focused geometry makes the bucket a practical choice for moving and discharging large quantities of suitable material.

Hydraulic high-dump operation provides up to 48 inches of additional dump-out height. Rather than relying only on the loader’s standard lift and rollback geometry, the bucket’s hydraulic mechanism extends the discharge point to provide greater clearance when unloading. A soft-stop cylinder helps reduce vibration during operation.

BO500 Quick-Attach Configuration

This complete configured model is supplied with HLA Attachments’ BO500 universal skid-steer quick-attach mount. The loader or carrier must have a matching interface, adequate operating capacity for the approximately 1,340 lb attachment and intended load, and suitable auxiliary hydraulics.

Key Features

High-volume hydraulic high-dump loader bucket
96-inch nominal outside width
Increases dump-out height by up to 48 inches
40.3 cu ft struck capacity
49.0 cu ft SAE heaped capacity
High-volume profile measuring 39 inches deep by 33 inches high
Exclusive flat-bottom design supports easier cleanout without sacrificing capacity
Soft-stop cylinder helps reduce vibration
Drilled for installation of a standard bolt-on cutting edge
BO500 universal skid-steer quick-attach mount
Approximately 1,340 lb attachment weight

Specifications

Brand	HLA Attachments
Manufacturer	HLA Attachments (Horst Welding)
Configured Model	HRBHV96BO500
Base Bucket Model	HRBHV96
Product Type	Hydraulic high-volume high-dump loader bucket
Operating Type	Hydraulic high-dump operation
Mount Configuration	BO500 universal skid-steer quick-attach mount
Outside Width	96 in
Nominal Transport Width	96 in
Bucket Depth	39 in
Bucket Height	33 in
Struck Capacity	40.3 cu ft
SAE Heaped Capacity	49.0 cu ft
Additional Dump-Out Height	Up to 48 in
Weight	Approximately 1,340 lb
Cutting-Edge Provision	Drilled for a standard bolt-on cutting edge

Compatibility and Hydraulic Requirements

The HRBHV96BO500 uses a universal skid-steer quick-attach interface through its BO500 mount configuration. The compatible loader or carrier must have adequate operating capacity for the attachment, the material being handled, and the intended working conditions. Specific host-machine approval is not published for this exact configuration.

Auxiliary hydraulics are required to operate the high-dump mechanism. A verified hydraulic flow or pressure requirement is not specified for this model, so the carrier’s hydraulic suitability should be confirmed before installation.
