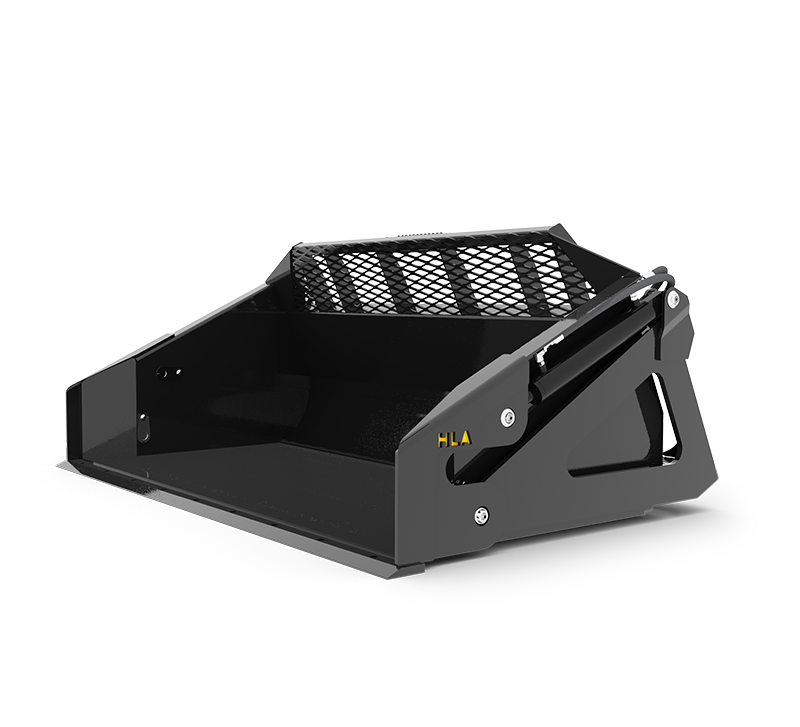

HLA Attachments - 84" High Dump Bucket High Volume - Hydraulic High-Dump Loader Bucket [LA-HRBHV84BO500]

HLA Attachments HRBHV84-BO500 84-Inch High-Volume Hydraulic High-Dump Bucket combines substantial material capacity with a hydraulic high-dump design that can raise dump-out height by up to 48 inches. Configured with the BO500 universal skid-steer-style quick-attach mount, this loader bucket is designed for jobs where additional discharge height, high volume, and efficient bucket cleanout are important. Its 39-inch-deep, 33-inch-high profile provides a 34.9-cubic-foot struck capacity and a 42.3-cubic-foot SAE heaped capacity, making it a practical choice for moving and dumping large quantities of material.

High-Dump Capability

The HRBHV84 is engineered to increase dump-out height by as much as 48 inches. This additional reach helps place material at a greater height than a conventional bucket can typically achieve, while retaining the familiar loading function of a front-mounted bucket. The hydraulic high-dump mechanism is equipped with a soft-stop cylinder to reduce vibration during operation.

With an 84-inch outside width, the bucket offers broad material coverage. Its high-volume shape measures 39 inches deep and 33 inches high, providing generous capacity without requiring a wider attachment. The bucket weighs approximately 1,230 pounds.

Flat-Bottom High-Volume Design

HLA Attachments equips this bucket with an exclusive flat-bottom design. This configuration supports easier cleanout while maintaining the capacity expected from a high-volume bucket. The result is a useful combination of material-holding volume and a bucket floor designed to make discharging the load more effective.

The bucket is also drilled for a standard bolt-on cutting edge. This provision allows a compatible cutting edge to be fitted without requiring the bucket to be drilled as part of installation.

Key Features

• Hydraulic high-dump bucket with up to 48 inches of additional dump-out height
• 84-inch outside width for broad loading coverage
• High-volume profile measuring 39 inches deep and 33 inches high
• 34.9-cubic-foot struck capacity
• 42.3-cubic-foot SAE heaped capacity
• Exclusive flat-bottom design for easier cleanout without sacrificing capacity
• Soft-stop cylinder helps reduce vibration
• Drilled for a standard bolt-on cutting edge
• BO500 universal skid-steer-style quick-attach mounting configuration
• Approximately 1,230-pound attachment weight

Compatibility

This HRBHV84 bucket is supplied in the BO500 mounting configuration, which uses a universal skid-steer-style quick-attach interface. Confirm that the intended loader has the matching quick-attach system and is suitable for the bucket’s dimensions, approximate weight, and loaded capacity before use.

Specifications
