Description

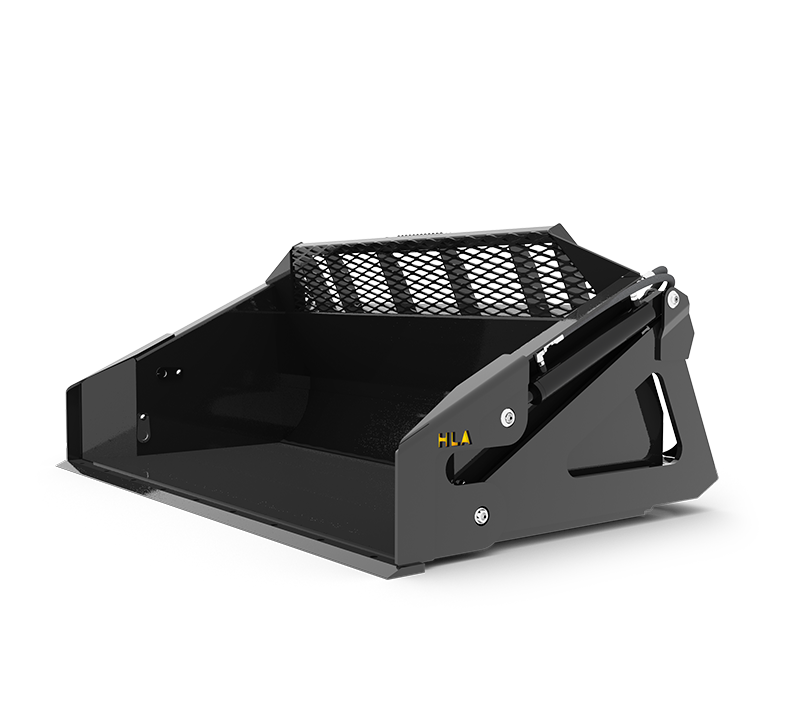

HLA Attachments HRBHV78BO500 78-Inch High-Volume High-Dump Bucket is a hydraulic loader bucket designed to combine generous material capacity with increased dump-out height. Its high-volume profile provides a 32.2 cu. ft. struck capacity and 38.9 cu. ft. SAE heaped capacity, making it well suited to loading and material-handling applications where bucket volume and elevated discharge are important. The high-dump mechanism can increase dump-out height by up to 48 inches, while the BO500 universal skid-steer-style quick-attach interface allows installation on compatible loader carriers.

High-Volume Material Handling

The HRBHV78 features a 78-inch outside width with a 39-inch-deep and 33-inch-high bucket profile. This high-volume configuration offers substantial capacity while retaining a practical working width for compatible loaders. It is designed for operations that need to collect, carry and discharge larger volumes of material efficiently.

An exclusive flat-bottom design helps make the bucket easier to clean out without sacrificing capacity. This design is especially useful when complete material discharge and straightforward bucket cleanout are priorities.

Up to 48 Inches of Additional Dump-Out Height

The hydraulic high-dump design increases dump-out height by up to 48 inches. This added reach can help when discharging material into elevated receiving points or when a conventional loader bucket does not provide sufficient dump clearance.

HLA’s Soft Stop Cylinder is incorporated to reduce vibration during operation. The bucket is also drilled for a standard bolt-on cutting edge, allowing an appropriate cutting edge to be fitted when required.

Key Features

  • 78-inch high-volume hydraulic high-dump loader bucket
  • 32.2 cu. ft. struck capacity
  • 38.9 cu. ft. SAE heaped capacity
  • Increases dump-out height by up to 48 inches
  • Exclusive flat-bottom design supports easier cleanout without sacrificing capacity
  • 39-inch-deep by 33-inch-high bucket profile
  • Soft Stop Cylinder helps reduce vibration
  • Drilled for a standard bolt-on cutting edge
  • BO500 universal skid-steer-style quick-attach configuration
  • Approximate manufacturer-listed HRBHV78 bucket weight of 1,205 lb.

Compatibility

The HRBHV78BO500 is configured with HLA Attachments’ BO500 mounting interface. It is intended for loaders equipped with a compatible universal skid-steer-style quick-attach carrier. Confirm the loader’s carrier type, operating capacity and attachment requirements before installation or use.

Specifications

Brand HLA Attachments
Product code LA-HRBHV78BO500
Model HRBHV78BO500
Manufacturer base model HRBHV78
Product type Hydraulic high-volume high-dump loader bucket
Outside width 78 in.
Bucket depth 39 in.
Bucket height 33 in.
Struck capacity 32.2 cu. ft.
SAE heaped capacity 38.9 cu. ft.
Additional dump-out height Up to 48 in.
Approximate weight 1,205 lb. (manufacturer-listed HRBHV78 bucket weight)
Quick-attach mounting code BO500
Interface type Universal skid-steer-style quick attach
Cylinder feature Soft Stop Cylinder
Cutting-edge provision Drilled for a standard bolt-on cutting edge
