HLA Attachments - 78" 4-in-1 Skid Steer Bucket [LA-SBFNO78BO500]

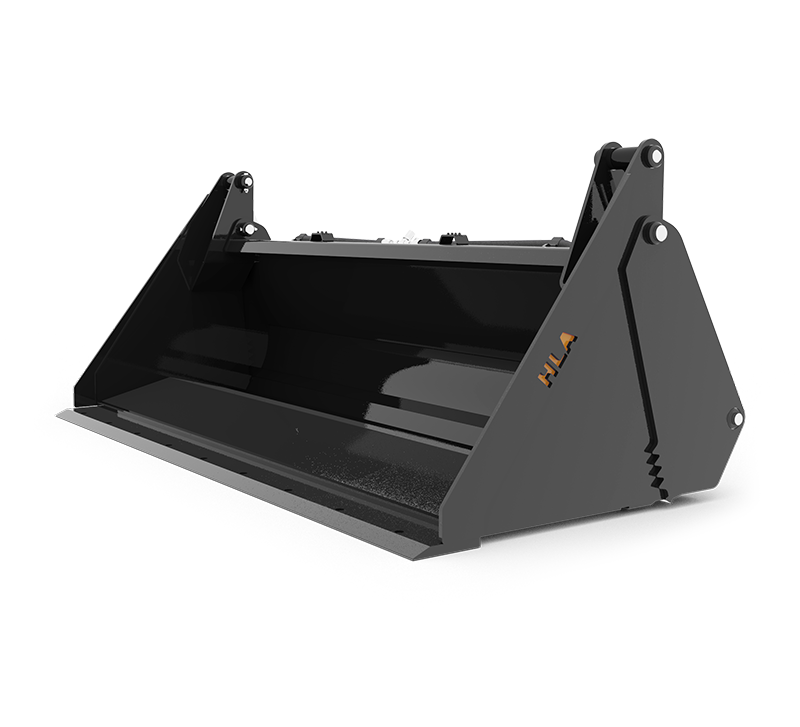

HLA Attachments 78-inch 4-in-1 Skid Steer Bucket is a hydraulically operated bucket designed for compatible skid steers and loaders with a skid-steer-style quick-attach carrier. Configured as manufacturer model SBFNO78BO500, it combines a 78-inch inside width with a BO500 mounting interface, two hydraulic cylinders, and heavy material construction. Its 12.5 cu. ft. struck capacity and 16.4 cu. ft. SAE heaped capacity make it a versatile attachment for loading and material-handling applications where the additional functionality of a hydraulic 4-in-1 bucket is required.

Hydraulic 4-in-1 Configuration

The bucket is operated by two supplied 2-1/2-inch by 8-inch hydraulic cylinders. This hydraulic configuration requires the host skid steer or loader to have an auxiliary hydraulic circuit. Hydraulic flow and pressure requirements are not specified, so the machine and attachment requirements should be confirmed before installation.

An optional 90-inch hose kit with flat-faced couplers is available. The hose kit is listed as an option rather than part of the standard bucket specification.

Heavy-Duty Bucket Construction

The HLA SBFNO78 uses 1/4-inch material for the main bucket body, with 3/8-inch end plates and a 3/8-inch clam floor bottom. This combination provides reinforced material thickness in key areas of the bucket and clam assembly. The bucket is also drilled to accept a standard bolt-on cutting edge, allowing it to be equipped with a compatible cutting edge where required.

With an approximate weight of 1,087 lb, machine lift capacity, operating capacity, and attachment limits should be checked before use. The configured bucket measures 29 inches deep and 20 inches high, with a calculated outside width of 80 inches.

Key Features

• Hydraulic 4-in-1 skid-steer bucket configuration
• 78-inch inside width
• 80-inch calculated outside width
• BO500 skid-steer-style quick-attach mounting interface
• Two supplied 2-1/2-inch by 8-inch hydraulic cylinders
• 12.5 cu. ft. struck capacity
• 16.4 cu. ft. SAE heaped capacity
• 1/4-inch main bucket material
• 3/8-inch end plates
• 3/8-inch clam floor bottom
• Drilled for a standard bolt-on cutting edge
• Optional 90-inch hose kit with flat-faced couplers

Compatibility

This bucket is compatible with skid steers equipped with a skid-steer-style quick-attach carrier. It can also be used with loaders equipped with an HLA BO500 skid-steer-style quick-attach carrier. Confirm the carrier interface, machine lift capacity, hydraulic capability, and attachment clearance before fitting or operating the bucket.

Hydraulic Requirements

An auxiliary hydraulic circuit is required to operate the two supplied hydraulic cylinders. Hydraulic flow and pressure specifications are not stated for this model. Suitable hydraulic hoses and couplers must be selected for the host machine; an optional 90-inch hose kit with flat-faced couplers is available.
