HLA Attachments - 72" Side Discharge (3/4" cleated belt) 1-7/8 cu yd - 12 GPM Minimum Hydraulic Side Discharge [LA-SSC72BO500]

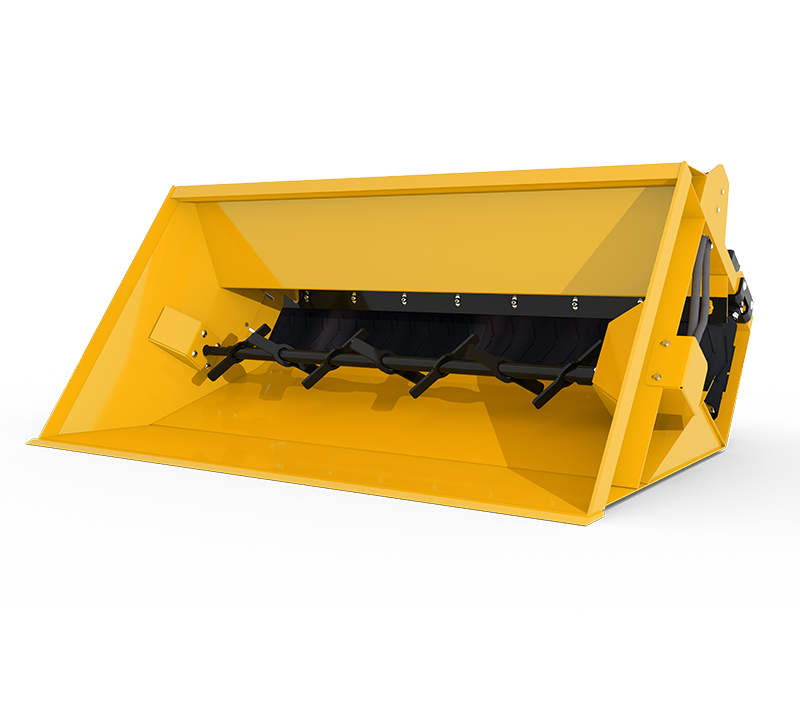

HLA Attachments SSC72BO500 Hydraulic Side-Discharge Sawdust/Material Bucket combines a 72-inch inside width, approximately 1-7/8 cubic yard heaped capacity, and a heavy-duty cleated conveyor belt for controlled material placement. Designed for loader and material-handler applications, this bucket can discharge from either the left or right side, allowing the operator to place material without repeatedly repositioning the carrier. Its hydraulically driven beater, shield fingers, adjustable discharge doors, and direct-drive belt system work together to improve flow, break up clumps, and help reduce bridging. The BO500 bolt-on quick-attach configuration provides mounting flexibility, while the hydraulic system requires a minimum flow of 12 GPM.

Controlled Left- or Right-Side Discharge

The SSC72 is equipped with a 12-inch-wide heavy-duty rubber conveyor belt featuring 3/4-inch cleats. The cleated surface helps carry material toward the selected discharge side, while two hydraulic belt motors provide direct power to the conveyor. Operators can choose to discharge from either side of the machine to suit the work area and placement requirements.

Adjustable discharge doors provide additional control over material flow at the bucket outlets. Adjustable belt tensioners help prevent slippage and maintain proper belt tracking, supporting consistent operation and simplifying belt adjustment.

Hydraulic Beater for Improved Material Flow

A dedicated hydraulic motor powers the bucket’s beater. The beater promotes consistent feeding onto the conveyor and helps prevent material from bridging inside the bucket. Shield fingers further assist by breaking up clumps before the material reaches the discharge belt. This combination is designed to support more even handling of sawdust and other suitable materials.

Key Features

• 72-inch inside bucket width
• Approximately 1-7/8 cubic yard heaped capacity
• 12-inch-wide heavy-duty rubber discharge belt
• 3/4-inch cleats for positive material movement
• Operator-selectable discharge from the left or right side
• Hydraulic coupled direct-drive system
• Two hydraulic motors power the discharge belt
• Separate hydraulic motor powers the beater
• Hydraulically driven beater improves flow and helps reduce bridging
• Shield fingers help break up material clumps
• Adjustable discharge doors improve material control
• Adjustable belt tensioners help prevent slippage and maintain tracking
• BO500 bolt-on quick-attach mounting configuration
• Optional factory-installed agitator speed-control valve
• Optional hose and spring hose-mount kits

Hydraulic Requirements

The HLA SSC72BO500 requires a hydraulic flow of at least 12 GPM. Before ordering, confirm that the intended loader or material handler can supply the required hydraulic flow and has the appropriate hydraulic connections for the attachment.

Mounting and Compatibility

This configured model uses HLA’s BO500 bolt-on quick-attach mounting configuration. Bolt-on quick-attach mounting allows the bucket to be fitted to compatible loaders and material handlers through the appropriate adapter. HLA uses the BO500 mounting code for multiple skid-steer-style quick-attach applications, so the specific carrier interface should be confirmed before purchase.

An optional Category 2 three-point-hitch mount with a hydraulic tilting cylinder is also available. This is an optional mounting arrangement rather than the standard BO500 configuration represented by this product code.

Specifications
