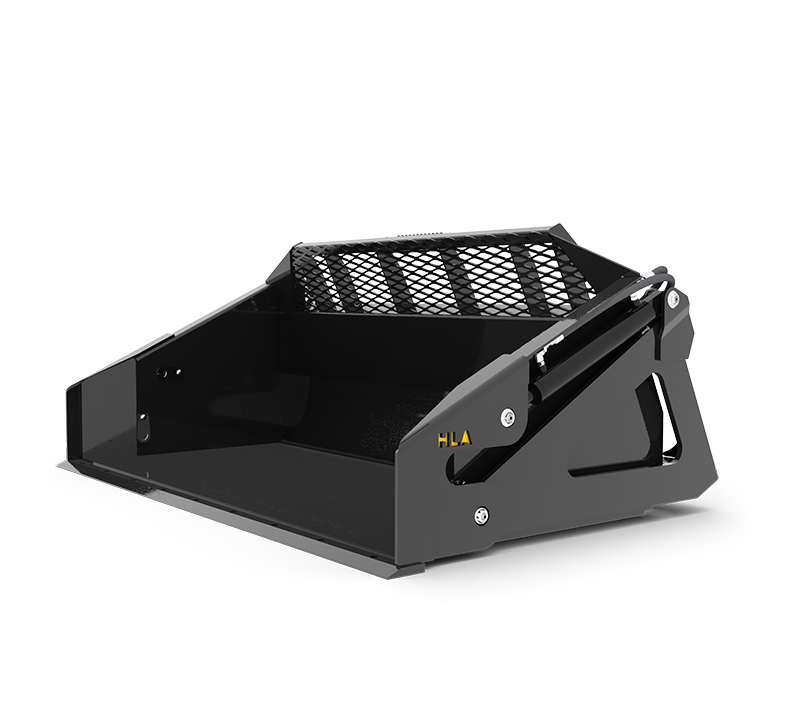

HLA Attachments - 72" High Dump Bucket High Volume - Hydraulic High-Dump Loader Bucket [LA-HRBHV72BO500]

HLA Attachments HRBHV72BO500 72-Inch High-Volume Hydraulic High-Dump Bucket combines generous material capacity with increased dump-out height for demanding loader work. This high-volume bucket provides a 29.5 cu ft struck capacity and a 35.5 cu ft SAE heaped capacity within a 72-inch outside width. Its hydraulic high-dump action can increase dump-out height by up to 48 inches, helping the loader place material into higher-sided containers or elevated locations. The exclusive flat-bottom design supports easier cleanout without sacrificing capacity, while HLA’s Soft Stop Cylinder helps reduce vibration during operation.

High-Volume Material Handling

The HRBHV72 bucket is designed with a deep, tall profile for moving substantial volumes of material. It measures 39 inches deep and 33 inches high, giving it the capacity needed for efficient loading and material-handling tasks. Its 35.5 cu ft SAE heaped capacity helps operators move more material per pass, while the 29.5 cu ft struck-capacity rating provides a clear reference for level-filled volume.

Unlike a conventional bucket that relies only on the loader’s standard lift and dump geometry, this hydraulic high-dump model provides up to 48 inches of additional dump-out height. That extra reach can make it easier to unload where greater discharge height is required.

Flat-Bottom Design and Controlled Operation

HLA Attachments equips this bucket with an exclusive flat-bottom design. The flat floor promotes easier cleanout so material is less likely to remain trapped in the bucket after dumping, while retaining the capacity expected from the high-volume profile.

A Soft Stop Cylinder is incorporated to reduce vibration as the high-dump mechanism operates. This supports smoother, more controlled bucket movement and helps limit abrupt motion during the dump cycle. The bucket is also drilled to accept a standard bolt-on cutting edge, allowing an appropriate cutting edge to be fitted when required.

Key Features

• 72-inch high-volume hydraulic high-dump loader bucket
• Increases dump-out height by up to 48 inches
• 29.5 cu ft struck capacity
• 35.5 cu ft SAE heaped capacity
• 39-inch-deep and 33-inch-high bucket profile
• Exclusive flat-bottom design promotes easier cleanout without sacrificing capacity
• Soft Stop Cylinder helps reduce vibration during operation
• Drilled for a standard bolt-on cutting edge
• BO500 quick-attach mounting configuration
• Approximate bucket weight of 1,100 lb

Compatibility

This HRBHV72 bucket is supplied with HLA’s BO500 quick-attach mounting configuration. HLA uses BO500 for numerous skid-steer-carrier and compatible loader quick-attach applications. Because loader interfaces can vary by machine, fitment should be confirmed against HLA’s loader application guide before purchase.
