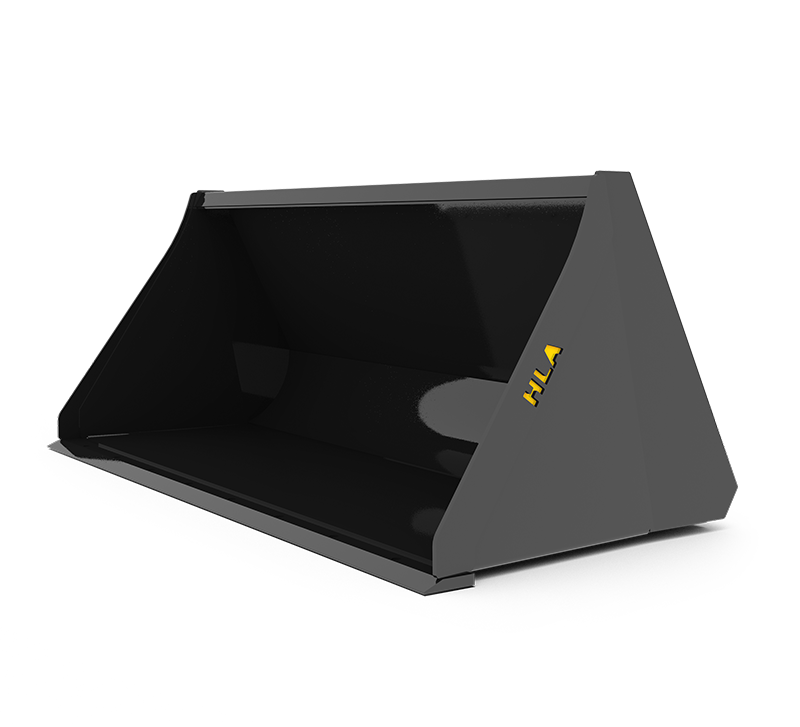

HLA Attachments - 60" Skid Steer Swale Bucket 5" - Grading and Ditch Work [LA-SBSW60BO500]

HLA Attachments SBSW60BO500 60-Inch Skid-Steer Swale Bucket is purpose-built for cutting, shaping, and finishing drainage swales, ditches, and graded landscape features. Its V-bottom profile forms a defined 5-inch-deep swale, while the 60-inch inside width helps cover ground efficiently. A round-back bucket design provides strength while promoting easy filling and cleanout, and the flat top gives the operator a convenient visual level indicator during grading work. Configured with the BO500 skid-steer quick-attach interface, this bucket is suitable for compatible skid-steer loaders.

Designed for Swale and Drainage Work

The SBSW60BO500 combines a specialized V-bottom shape with durable bucket construction for jobs where controlled drainage contours are required. It can be used to cut and finish swales, establish shallow drainage channels, and complete grading work in landscaping and property-maintenance applications. The bucket has an 11.9-cubic-foot struck capacity and measures 30 inches deep by 17 inches high.

Its V-bottom design creates a consistent swale profile with a specified depth of 5 inches. The bucket’s flat top also acts as a visual reference, helping the operator judge bucket position and maintain a level orientation while shaping or finishing the work area.

Durable Bucket Construction

HLA Attachments builds this swale bucket with 3/16-inch bucket material and 1/4-inch end plates. A reinforced top lip adds support across the bucket opening, while the round back contributes strength and allows material to enter and release more easily.

At the working edge, a heavy 3/4-by-4-inch bevelled cutting edge supports cutting and grading performance. This combination of reinforced construction and a substantial cutting edge makes the bucket well suited to repeated landscaping, drainage, and ditch-finishing tasks.

Key Features

• 60-inch inside width for grading and swale-forming applications
• V-bottom design for shaping defined drainage swales
• 5-inch swale depth
• 11.9-cubic-foot struck capacity
• Round back for strength, easy filling, and convenient cleanout
• Flat top serves as a visual level indicator during operation
• Reinforced top lip for added structural support
• 3/16-inch bucket material
• 1/4-inch end plates
• 3/4-by-4-inch bevelled cutting edge
• BO500 skid-steer quick-attach configuration
• Approximate weight of 435 lb

Compatibility

The HLA Attachments SBSW60BO500 is configured with a BO500 skid-steer quick-attach interface. It is compatible with skid-steer loaders equipped with a compatible skid-steer quick-attach carrier. Confirm the loader’s attachment interface and operating capacity before installation and use.
