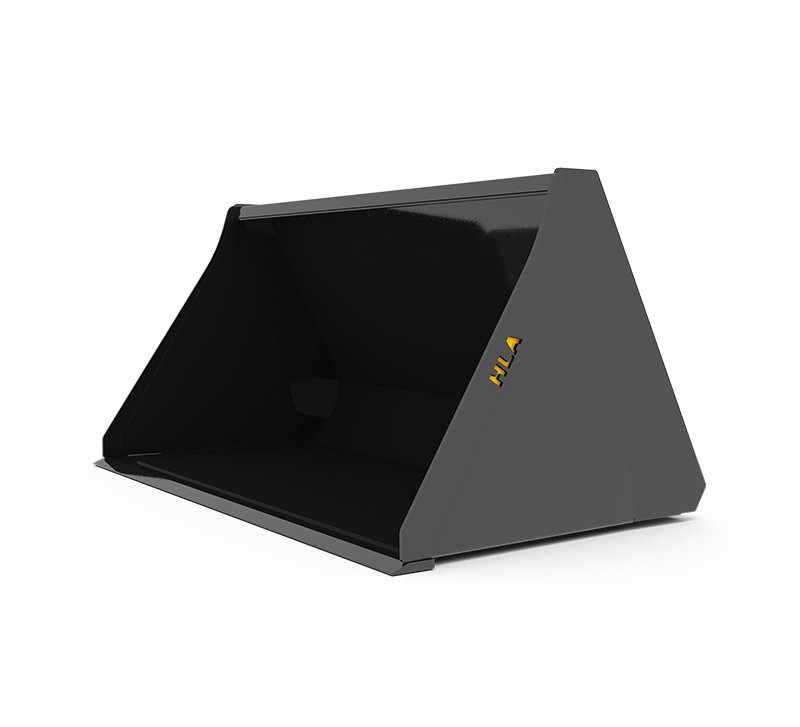

HLA Attachments - 60" Regular Duty High Volume Skid Steer Bucket [LA-SBHV60BO500]

HLA Attachments SBHV60BO500 60-inch Regular-Duty High-Volume Skid-Steer Bucket combines generous capacity with a reinforced, self-cleaning design for efficient material handling. Its 60-inch inside width, 20.8 cu. ft. struck capacity, and 25.5 cu. ft. SAE heaped capacity provide useful volume in a compact bucket measuring 34 inches deep and 31 inches high. The BO500 skid-steer quick-attach configuration is designed for compatible skid-steer quick-attach carriers, while reinforced construction, tapered end plates, and a flat top help make loading, cleanout, and load levelling more convenient.

High-Volume Regular-Duty Construction

The SBHV60BO500 is the 60-inch model in HLA Attachments’ Regular Duty High Volume Skidsteer Bucket family. The bucket is manufactured from 3/16-inch material and equipped with 1/4-inch end plates, providing a practical balance of strength and an approximate attachment weight of 540 lb.

A reinforced top lip supports the bucket’s upper structure, while the reinforced round back and end plates add strength and promote easy filling. The rounded interior profile also supports cleaner unloading and cleanout by reducing areas where material can collect.

Designed for Efficient Filling and Cleanout

Tapered, self-cleaning end plates are designed to reduce material buildup during use. This shape works together with the bucket’s reinforced round back to help material enter and leave the bucket cleanly. The flat upper surface also acts as a visual level indicator, helping the operator assess the bucket angle from the carrier.

At the front, a 3/4 x 4-inch beveled cutting edge provides a substantial working edge. The bucket is also drilled to accept a standard bolt-on cutting edge, allowing it to be equipped with a compatible replaceable edge when required.

Key Features

• 60-inch inside width with a calculated 62-inch outside width
• Regular-duty high-volume bucket construction
• 20.8 cu. ft. struck capacity
• 25.5 cu. ft. SAE heaped capacity
• 3/16-inch main material thickness
• Heavy 1/4-inch end plates
• 3/4 x 4-inch beveled cutting edge
• Drilled for a standard bolt-on cutting edge
• Reinforced top lip for additional structural support
• Reinforced round back and end plates for strength, easy filling, and cleanout
• Tapered, self-cleaning end plates help reduce material buildup
• Flat top serves as a convenient level indicator
• BO500 skid-steer quick-attach mounting configuration
• Approximate weight of 540 lb

Compatibility

This bucket is configured with the HLA BO500 skid-steer quick attach. It is compatible with skid-steer quick-attach carriers that use the HLA BO500 mounting configuration. Confirm that the carrier’s mounting system matches the BO500 configuration before ordering or attaching the bucket.
