HLA Attachments - 60" High Dump Bucket High Volume - Hydraulic High-Dump Loader Bucket [LA-HRBHV60BO500]

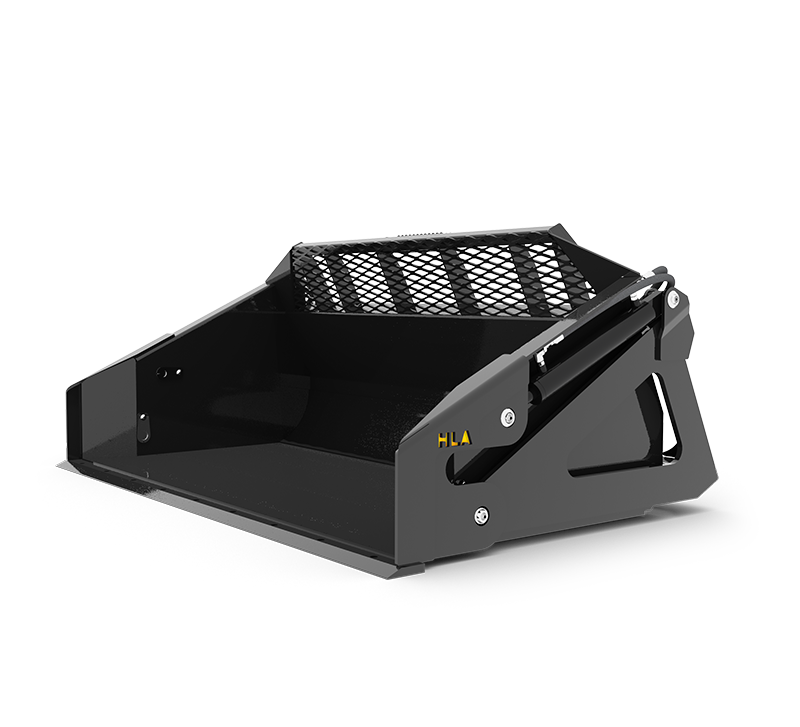

HLA Attachments HRBHV60BO500 60-Inch High-Volume Hydraulic High-Dump Loader Bucket combines generous material capacity with a hydraulic high-dump mechanism that can raise the dump-out height by up to 48 inches. Designed for compatible loaders with a universal skid-steer-style quick-attach carrier and auxiliary hydraulics, this bucket is well suited to applications where additional discharge height and volume are required. Its 39-inch-deep by 33-inch-high bucket geometry provides a 24.2-cubic-foot struck capacity and a 28.8-cubic-foot SAE heaped capacity, while HLA’s exclusive flat-bottom design helps simplify cleanout without sacrificing capacity.

High-Volume Material Handling with Additional Dump Height

The HRBHV60 is built to carry high-volume loads and discharge them higher than a conventional loader bucket. Its hydraulic high-dump action increases dump-out height by as much as 48 inches, making it a practical attachment for loading or unloading where the loader’s standard dumping reach may not be sufficient.

A soft-stop cylinder helps reduce vibration during operation. This provides smoother action as the high-dump mechanism moves through its cycle. The bucket’s flat-bottom construction is designed to make material cleanout easier while maintaining its high-volume profile.

With a 60-inch outside width, the bucket offers a compact working and transport width while delivering substantial capacity. It weighs approximately 980 pounds, so the host loader’s operating capacity, hydraulic capability, and attachment limits should be checked before use.

Key Features

• Hydraulic high-dump design raises dump-out height by up to 48 inches
• High-volume bucket geometry measuring 39 inches deep by 33 inches high
• 24.2-cubic-foot struck capacity
• 28.8-cubic-foot SAE heaped capacity
• Exclusive flat-bottom design supports easier cleanout without sacrificing capacity
• Soft-stop cylinder helps reduce vibration during operation
• Drilled to accept a standard bolt-on cutting edge
• BO500 universal skid-steer-style quick-attach loader mount
• 60-inch outside width
• Approximately 980-pound attachment weight

Compatibility

The BO500 mounting code identifies this model as having a universal skid-steer-style quick-attach interface. It is intended for universal skid-steer-style quick-attach loaders using HLA mounting code BO500, as well as selected loaders equipped with a skid-steer carrier.

Machine-specific fit must be confirmed against HLA’s loader mounting guide before purchase or installation. The loader must also have sufficient operating capacity for the bucket’s approximate 980-pound weight plus the material being handled.

Hydraulic Requirements

Loader auxiliary hydraulics are required to operate the high-dump mechanism. Hydraulic flow and pressure requirements are not specified for this model, so the loader’s hydraulic compatibility should be confirmed before installation.

Available hydraulic connection accessories include the HK90 90-inch hose kit with flat-faced couplers, the HK9090 90-inch hose kit with 90-degree flat-faced couplers, and the SHMK spring hose-mount kit.
