HLA Attachments - 48" Skid Steer Swale Bucket 4" - Grading and Ditch Work [LA-SBSW48BO500]

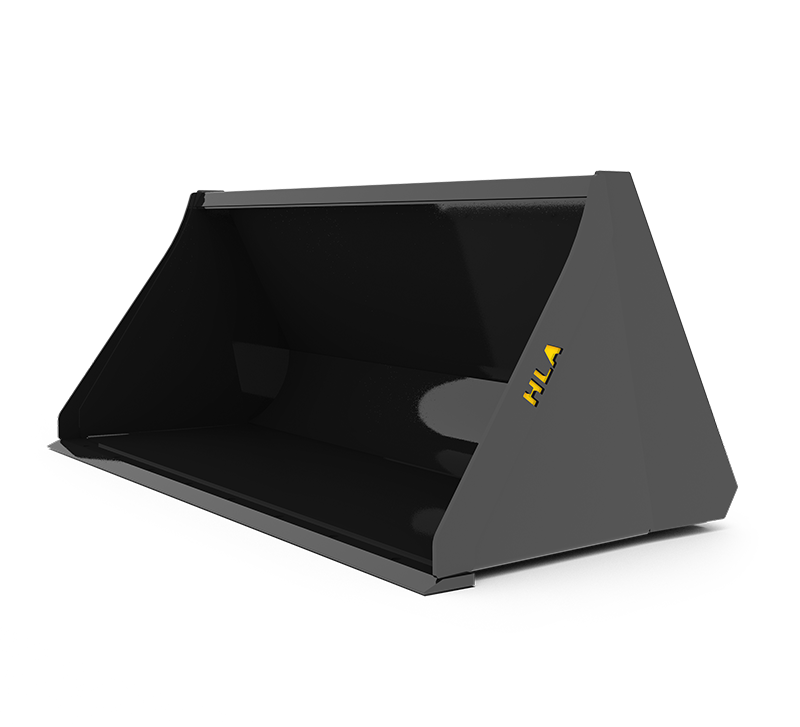

HLA Attachments SBSW48BO500 48-Inch Skid-Steer Swale Bucket is purpose-built for shaping drainage swales, grading terrain and completing ditch work with a compatible skid-steer loader. Its V-bottom profile forms a 4-inch-deep swale, while the 48-inch inside width provides a controlled working footprint for landscaping and drainage projects. A round-back bucket design promotes easy filling and cleanout while adding strength, and the BO500 universal skid-steer quick-attach mounting interface makes the bucket suitable for skid-steer loaders equipped with the corresponding universal attachment system.

Designed for Swale Shaping and Grading

Unlike a conventional flat-bottom bucket, the SBSW48 uses a V-bottom design to shape shallow drainage swales as material is cut, carried and placed. This profile makes it a practical attachment for creating or maintaining surface-drainage channels, contouring landscaped areas and performing general grading around properties, worksites and agricultural areas.

The bucket has a 4-inch swale depth and a 9.5-cubic-foot struck capacity. Its standard-model dimensions are 30 inches deep and 17 inches high, providing a useful combination of material capacity and visibility for controlled grading work. The flat top also serves as a level indicator, helping the operator judge bucket position while shaping or finishing the work area.

Durable Bucket Construction

The SBSW48 is constructed with 3/16-inch bucket material and 1/4-inch end plates. A reinforced top lip supports the upper edge of the bucket, while the round-back profile contributes strength and helps material move smoothly into and out of the bucket.

At the working edge, a 3/4-by-4-inch beveled cutting edge is designed to engage soil and other grading material. This substantial edge supports cutting, shaping and finishing operations while providing a defined contact point along the bucket’s 48-inch inside width.

Key Features

• V-bottom bucket profile designed for shaping drainage swales
• 48-inch inside working width
• 4-inch swale depth for shallow drainage and contour work
• 9.5-cubic-foot struck capacity
• 3/16-inch bucket material for durable construction
• 1/4-inch end plates
• 3/4-by-4-inch beveled cutting edge
• Reinforced top lip for additional structural support
• Round back for strength, easy filling and easier cleanout
• Flat top acts as a visual level indicator
• BO500 universal skid-steer quick-attach mounting configuration
• Approximate attachment weight of 380 pounds

Applications

This HLA Attachments swale bucket is intended for jobs where controlled shaping and drainage management are priorities. Typical uses include forming shallow swales, maintaining drainage paths, contouring soil, grading landscaped areas and working along ditches. Its dedicated V-bottom shape allows the operator to create a swale profile while grading, rather than relying on a conventional flat-bottom bucket.

Compatibility

The SBSW48BO500 is configured with the BO500 universal skid-steer weld-on mounting kit and quick-attach interface. It is compatible with skid-steer loaders that use the corresponding universal skid-steer quick-attach system. Confirm the loader’s mounting interface and operating capacity before installation or use.
