Description

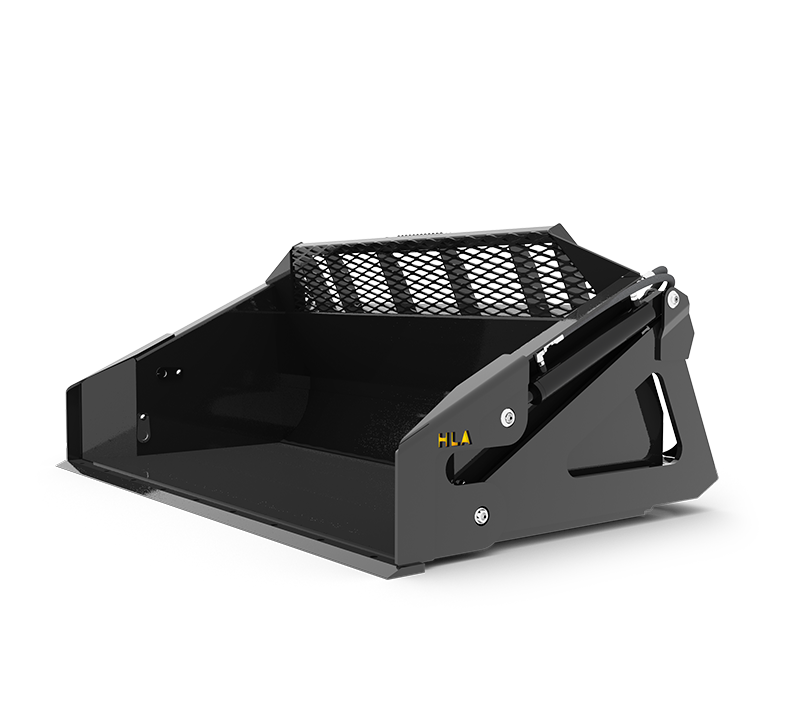

HLA Attachments HRBC36BO500 36-Inch Compact Hydraulic High-Dump Loader Bucket combines a compact bucket profile with increased dump-out height for loaders and skid steers. Its hydraulic high-dump design can add up to 48 inches of dump-out height, making it useful when loading into elevated containers or placing material beyond the normal reach of a standard bucket. This configuration pairs the 36-inch HRBC36 bucket with HLA’s BO500 universal skid-steer-style quick-attach mount.

Compact High-Dump Performance

At 28 inches deep and 21 inches high, the HRBC36 has a compact profile suited to applications where attachment size and manoeuvrability matter. Despite its compact dimensions, it provides a 5.3-cubic-foot struck capacity and a 6.7-cubic-foot SAE heaped capacity.

The high-dump mechanism increases dump-out height by up to 48 inches. This added height expands the loader’s material-handling capability without changing the host machine. A soft-stop cylinder helps reduce vibration during operation, supporting smoother movement through the dump cycle.

Flat-Bottom Bucket Design

HLA’s exclusive flat-bottom design is intended to make bucket cleanout easier without sacrificing capacity. The bucket is also drilled for a standard bolt-on cutting edge, allowing an appropriate cutting edge to be installed when required.

The HRBC36BO500 weighs approximately 530 pounds and measures 36 inches across its outside width. Optional 90-inch hydraulic hose kits and a spring hose mount kit are available separately.

Key Features

  • Compact hydraulic high-dump loader bucket
  • High-dump design increases dump-out height by up to 48 inches
  • 36-inch outside bucket width
  • Compact 28-inch-deep by 21-inch-high bucket profile
  • 5.3-cubic-foot struck capacity
  • 6.7-cubic-foot SAE heaped capacity
  • Exclusive flat-bottom design supports easier cleanout without sacrificing capacity
  • Soft-stop cylinder helps reduce vibration
  • Drilled for a standard bolt-on cutting edge
  • BO500 universal skid-steer-style quick-attach mounting configuration
  • Optional 90-inch hydraulic hose kits and spring hose mount kit available

Compatibility

The BO500 mounting configuration is HLA’s universal skid-steer-style quick attach. This bucket is compatible with loaders and skid steers equipped with a corresponding universal skid-steer-style quick-attach interface.

Specifications

Manufacturer HLA Attachments
Model HRBC36BO500
Base Bucket Model HRBC36
Product Type Compact hydraulic high-dump loader bucket
Mounting Configuration BO500 universal skid-steer-style quick attach
Outside Width 36 in
Transport Width 36 in
Bucket Depth 28 in
Bucket Height 21 in
Struck Capacity 5.3 cu ft
SAE Heaped Capacity 6.7 cu ft
Dump-Out Height Increase Up to 48 in
Approximate Weight 530 lb
Product Code LA-HRBC36BO500
