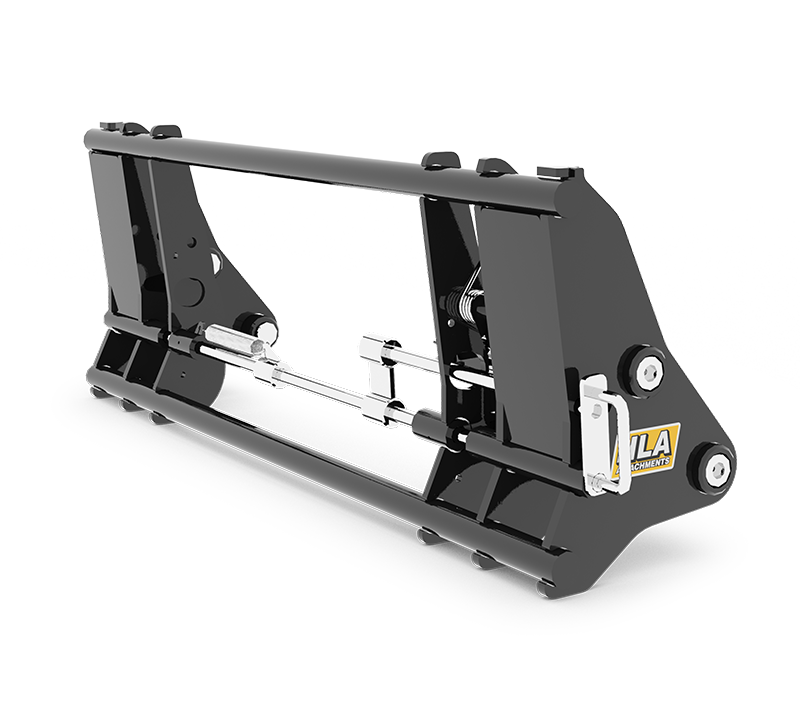

HLA Attachments - Universal Skid Steer Weld-on Kit Heavy Duty - Loader Quick-Attach Adapter [LA-WOKBO500HD]

HLA Attachments WOKBO500HD Heavy-Duty Universal Skid-Steer Weld-on Kit provides a robust way to convert a loader bucket or attachment to a universal skid-steer quick-attach interface. Built around a 1/2-inch closed-back mounting plate, this weld-on adapter kit is designed for heavy-duty conversion applications where a secure, permanent mounting solution is required. It can be used on loader buckets and other suitable attachments, helping standardize attachment connections around the widely used universal skid-steer quick-attach system.

Heavy-Duty Weld-on Conversion

The WOKBO500HD is a weld-on adapter rather than a bolt-on assembly. Its mounting plate is welded to the bucket or attachment being converted, creating an integrated connection point for a universal skid-steer quick-attach interface. The heavy-duty configuration combines a 1/2-inch plate with closed-back construction and has a listed weight of 150 lb.

Depending on the loader-mount configuration, the weld-on kit may consist of either one or two pieces. This allows the kit configuration to accommodate different conversion layouts while maintaining the intended universal skid-steer interface.

Key Features

• Heavy-duty universal skid-steer weld-on adapter kit
• Converts loader buckets or suitable attachments to a universal skid-steer quick-attach interface
• 1/2-inch mounting plate for heavy-duty conversion applications
• Closed-back plate construction
• Permanent weld-on mounting method
• Kit may include one or two pieces depending on the loader-mount configuration
• Listed weight of 150 lb
• Manufacturer model WOKBO500HD

Compatibility

This kit is designed for conversion to a universal skid-steer quick-attach interface. It is intended to be welded onto a loader bucket or attachment as part of the conversion. Because the exact kit layout may vary between one-piece and two-piece configurations, the loader-mount arrangement and attachment geometry should be evaluated before installation.

Installation Geometry

When converting a front-end-loader bucket, the adapter should be installed at a 65-degree angle. This specified installation angle is important for maintaining the bucket’s correct rollback and dump geometry after conversion. Correct positioning and welding are essential to preserve the intended operating range of the bucket or attachment.

Installation involves structural welding and alignment of the adapter with the attachment. The mounting position, loader geometry, attachment condition, and required clearances should all be confirmed before welding.
